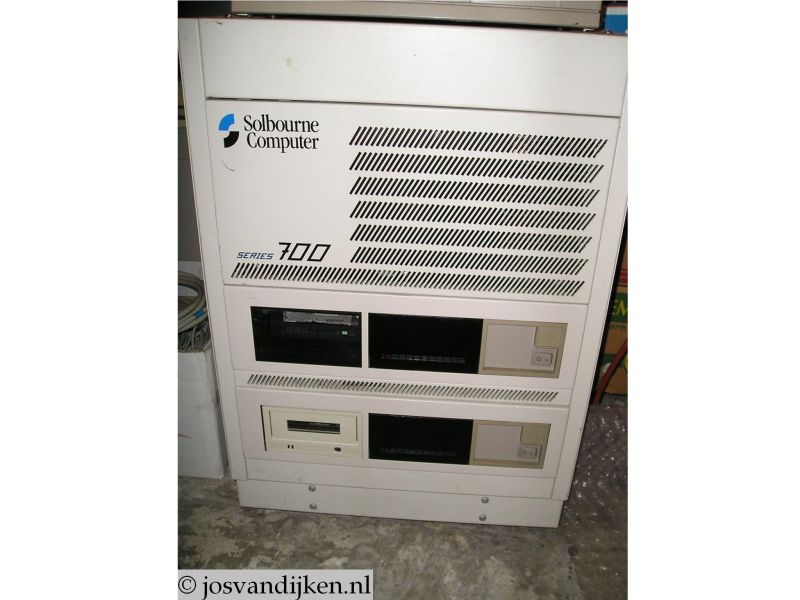

Solbourne Series 700

Dit apparaat is niet meer in mijn bezit.

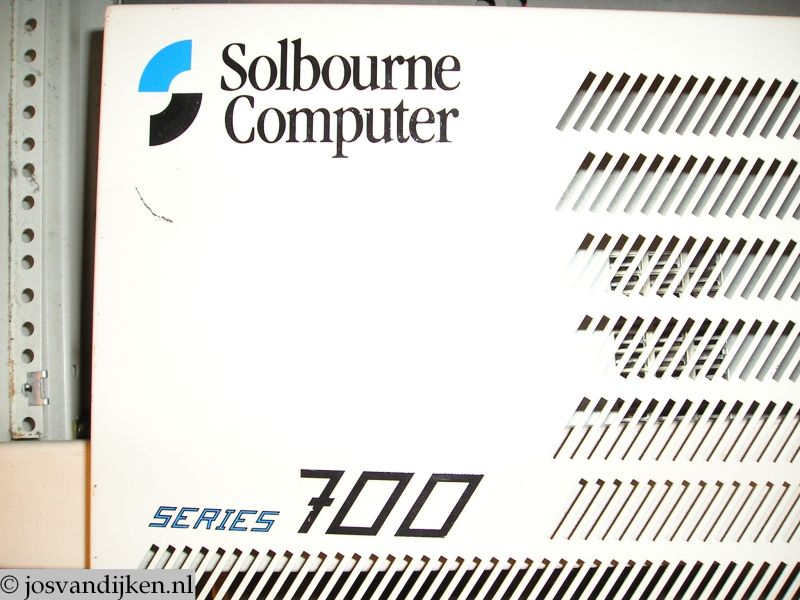

Solbourne Series 700 Front

Solbourne Series 700 Inside

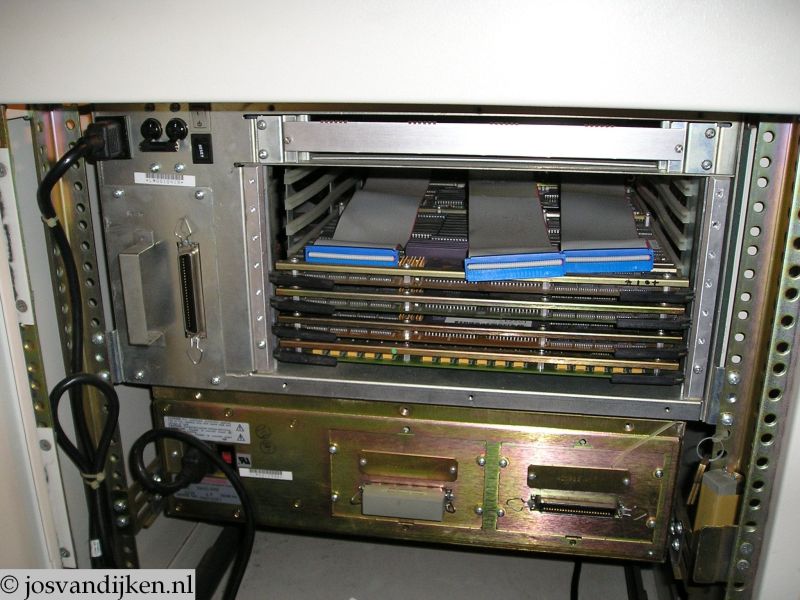

Insteekkaarten: 3 x CPU, 1 x RAM, 1 x I/O.

CPU:

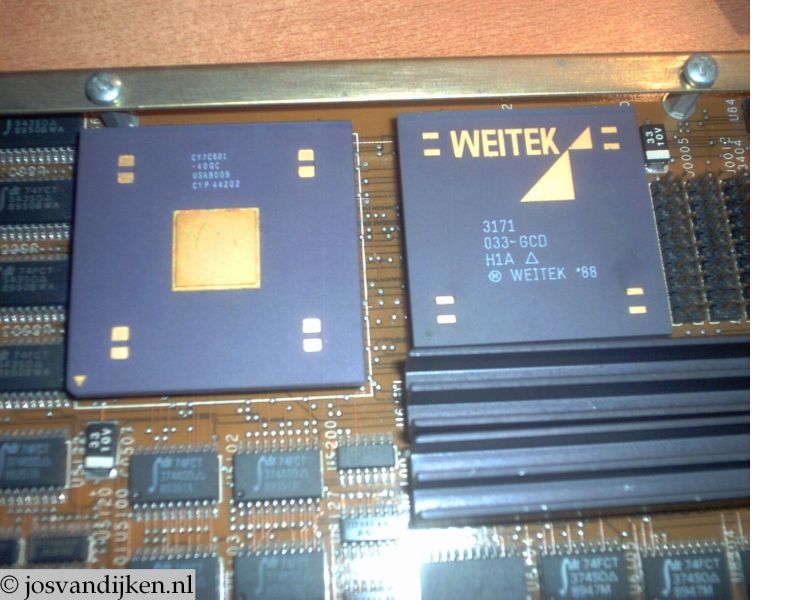

CPU #1

Solbourne computer inc. Warpdrive (102247 AN, *CPU 102275*)
Weitek 3171 033-GCD
Cypress CY7C601-40GC RISC processor

Solbourne Series 700 Inside

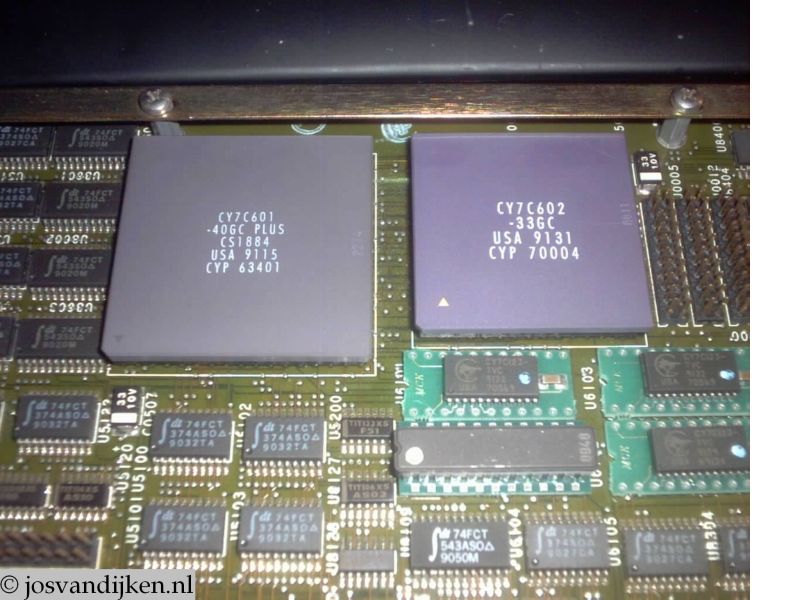

CPU #2

Solbourne computer inc. Warpdrive (102247 AK, *CPU 103746*)
Cypress CY7C602-33GC
Cypress CY7C601-40GC PLUS RISC processor

Solbourne Series 700 Inside

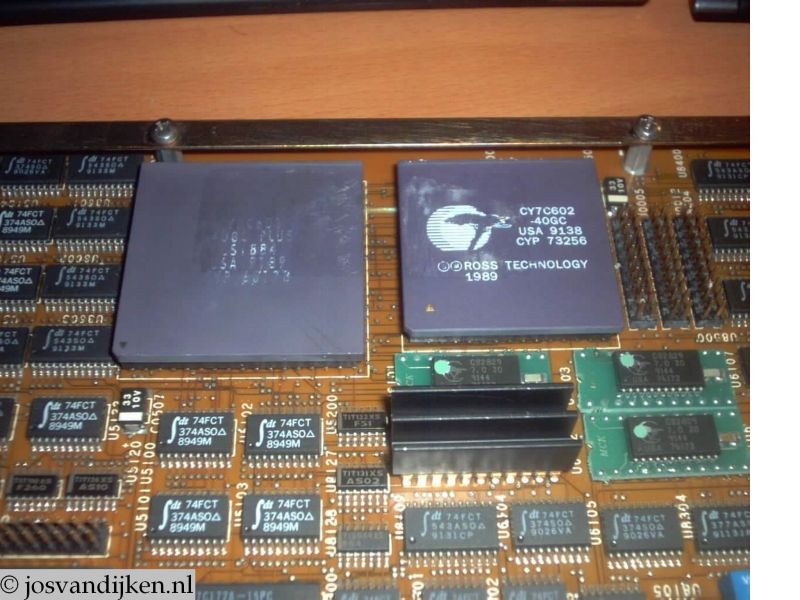

CPU #3

Solbourne computer inc. Warpdrive (102247 AN, *CPU 104068*)
Cypress CY7C602-40GC
Cypress CY7C601-40GC PLUS RISC processor

Solbourne Series 700 Inside

RAM:

RAM

Solbourne computer inc. (XT0003079) (104481 BA)
32/128 MB Memory Board (104345) Rev BA
18 * 16 = 288 stuks TOSHIBA TC514100ASJ-80 (4,194,304 WORD x BIT DYNAMIC RAM)

I/O-Graphics Board:

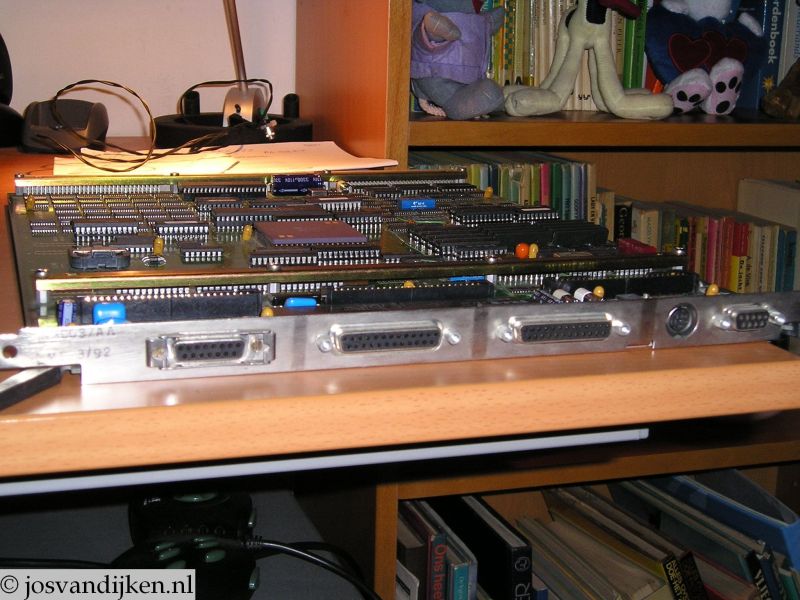

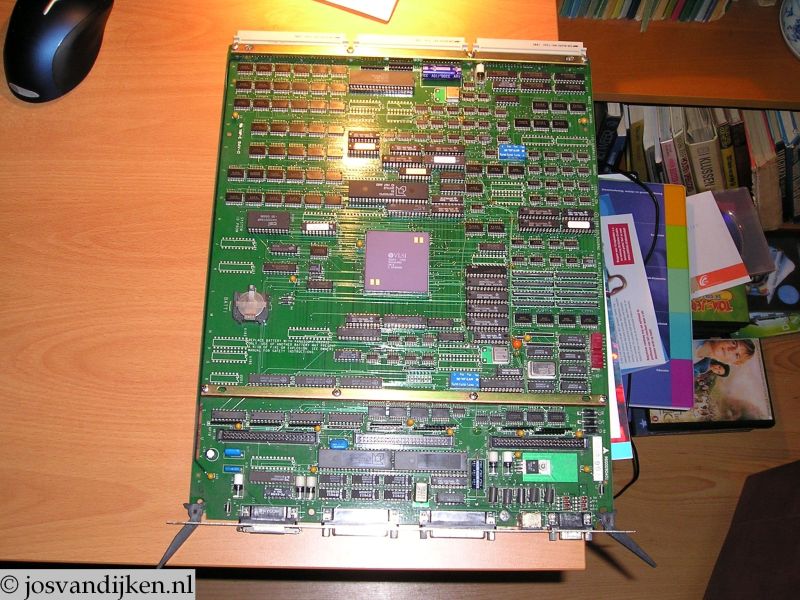

I/O-Graphics Board

Solbourne computer inc. (102801 DD) *FP0008FQM*

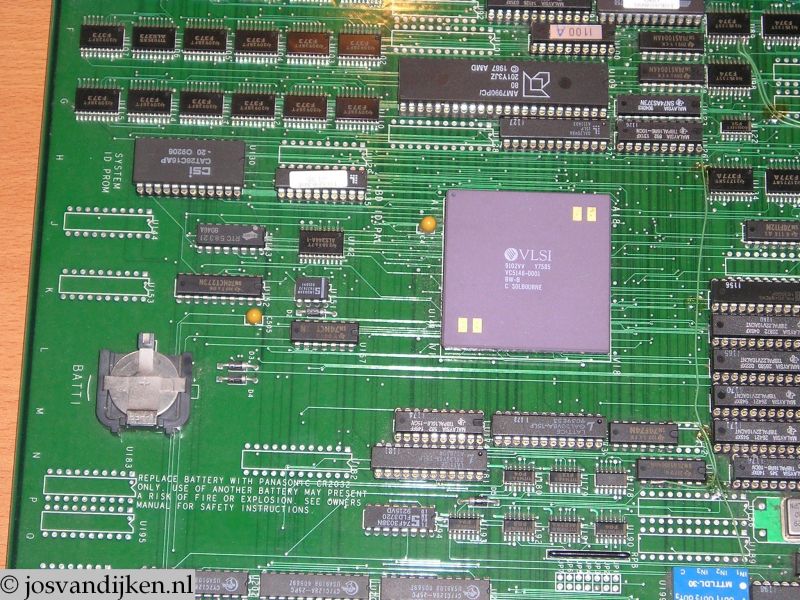

Video? controller: VLSI 9102VV ?
Seriele bus controller: 2 x AM8530H-4PC
Ethernet: AM7990PC/80

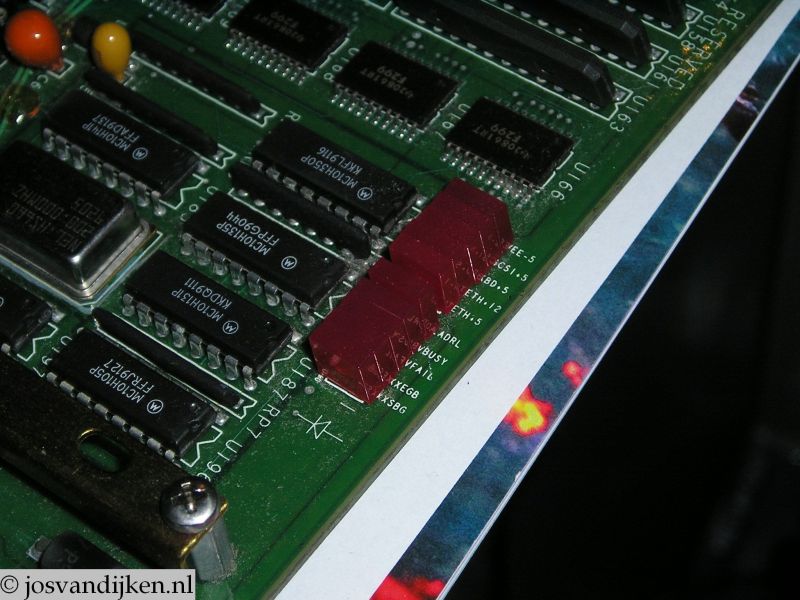

LED's:

VEE -5
SCSI +5
XBD +5
ETH +12
ETH +5
VADRL
VBUSY
VFAIL
XXEGB
XXSBG

Aansluitingen:

AUI Ethernet
RS-423
RS-423
Keyboard
Monochrome Video

PSU:

Hard- en Tapedrive voeding

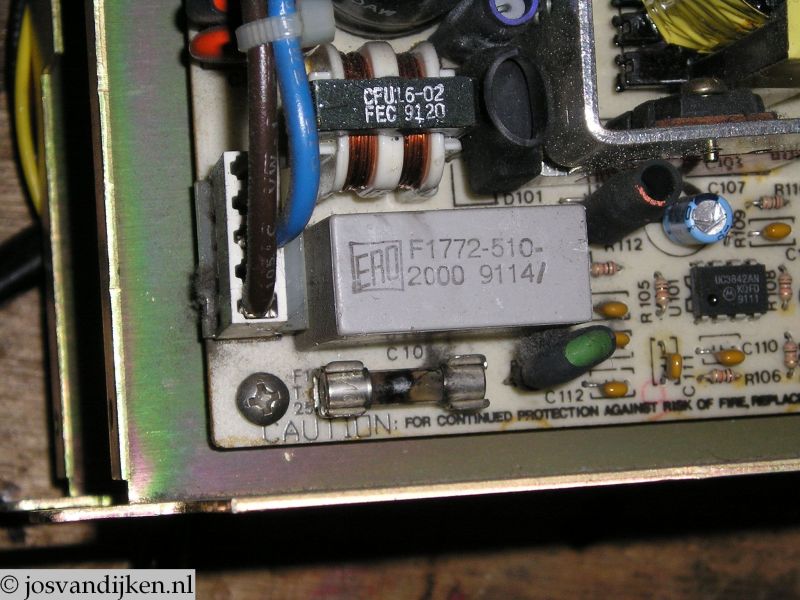

1 van de voedingen voor de Harddisks is defect...

Gelukkig is dat geen probleem, aangezien er 8 voedingen in een disk-lades zitten, en ik toch maar 5 apparaten heb.

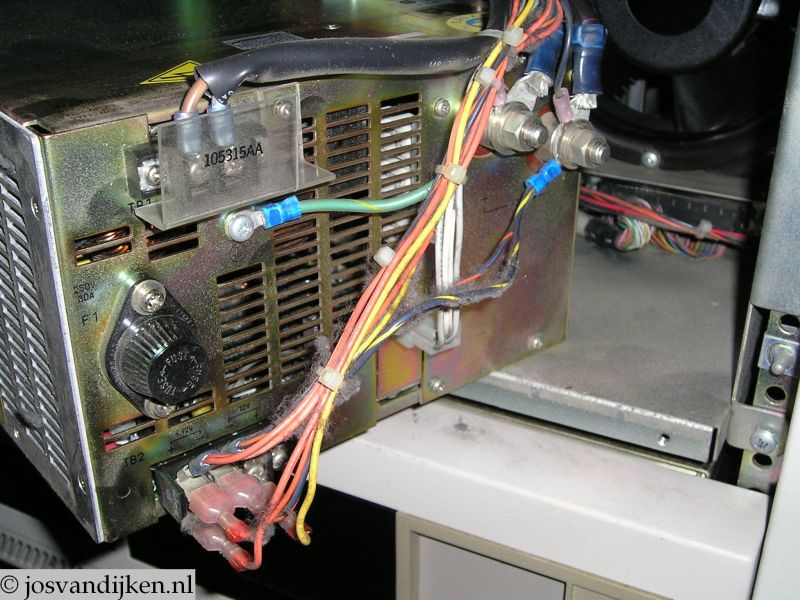

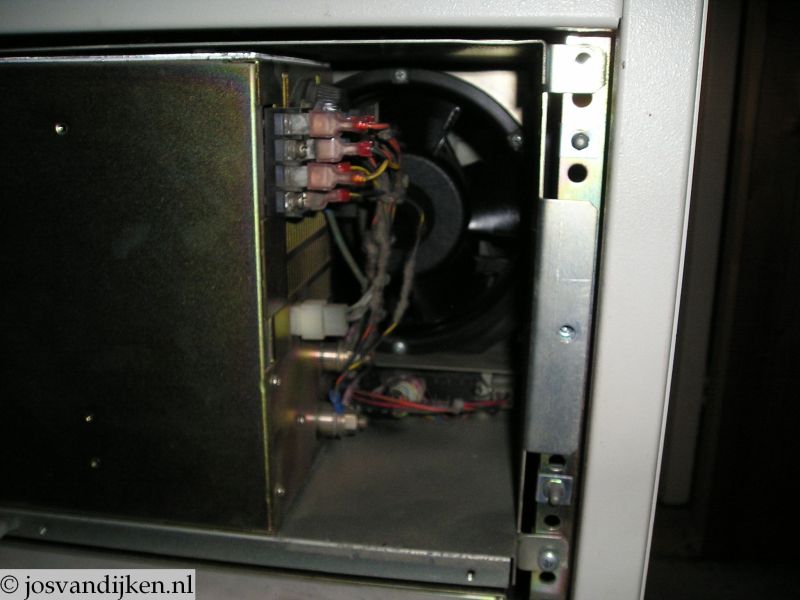

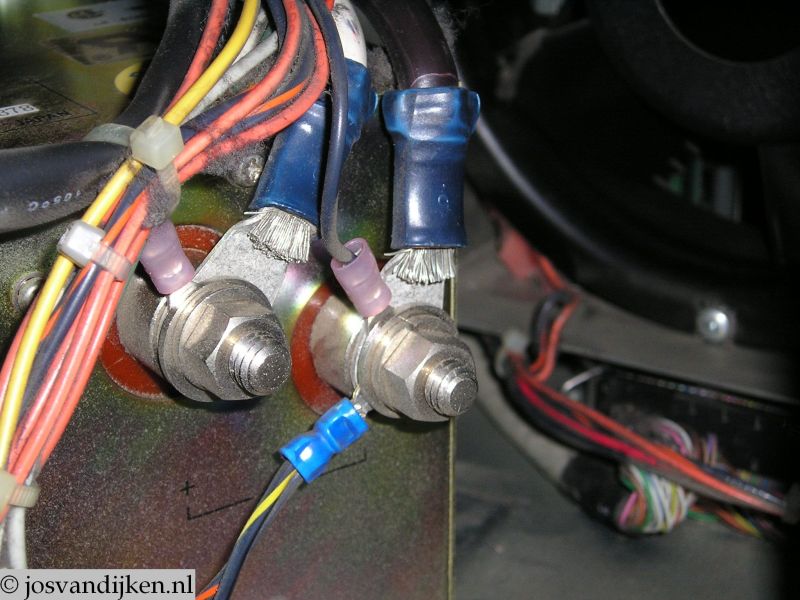

Hoofdvoeding

Hoofdvoeding voor de Solbourne zelf.

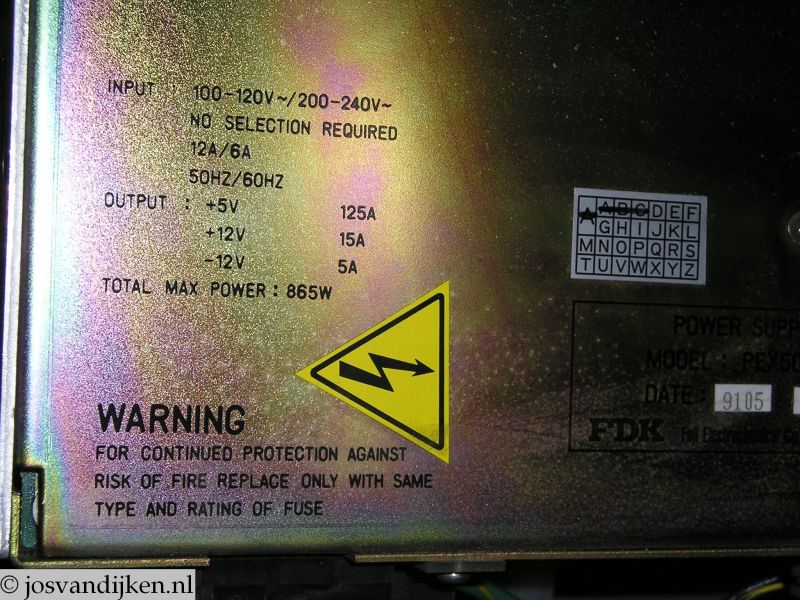

Specificaties:

Input:	100-120V~/200-240V~
	NO SELECTION REQUIRED
	12A/6A
	50HZ/60HZ
Output:	+5V	125A
	+12V	15A
	-12V	5A
Total Max Power:	865W

Hard- en Tapedrives

Harddisk #1

De harde schijf is een Seagate ST41650N

Hier wat test info van de schijf, aangesloten op een linux pc.

Drive information:
/dev/sg0 [=/dev/sda  bus0 ch=0 target=0 lun=0]
/dev/sg0
Vendor = SEAGATE
Product = ST41650
Version = 5092
Serial Number = 00000590
Copyright = opyright (c) 1991 Seagate  All rights reserved
SCSI Firmware = 75905092
Servo RAM Release = 75905092
Servo ROM Release = 75905137
Servo RAM Date = O
Servo ROM Date = 5938
Blocksize = 512, Highblock = 2780029, Capacity = 1390 MB
-this is a Seagate drive
-this drive does not support DST
-Mode Page Settings [current value (default)]:
-WCE bit = 0 (0)
-RCD bit = 0 (0)
-AWRE bit = 0 (0)
-ARRE bit = 0 (0)
-DExcpt bit = 1 (1)
-Number of cache segments = 32 (32)
-DLM bit = 0 (0)
-DTOLI bit = 0 (0)

JVDWSM30:~# ./st -t 100 /dev/sg0
Drive /dev/sg0 does not support DST - generic short test will be run
Starting 100 % Generic Short Test on drive /dev/sg0 (^C will abort test)
-Starting 30 second sequential reads from block 0 on drive /dev/sg0
-Starting 30 second sequential reads to end of disk on drive /dev/sg0
-Starting 30 second random reads on drive /dev/sg0
-Starting 30 second random seeks on drive /dev/sg0
Generic Short Test PASSED on drive /dev/sg0

JVDWSM30:~# ./st -T 100 /dev/sg0
Drive /dev/sg0 does not support DST - generic long test will be run
Starting generic long (full sequential verify) test (2780029 blocks)
		on drive /dev/sg0 (^C will abort test)
Sequential Test 5 % complete on drive /dev/sg0
Sequential Test 10 % complete on drive /dev/sg0
Sequential Test 15 % complete on drive /dev/sg0
Sequential Test 20 % complete on drive /dev/sg0
Sequential Test 25 % complete on drive /dev/sg0
Sequential Test 30 % complete on drive /dev/sg0
Sequential Test 35 % complete on drive /dev/sg0
Sequential Test 40 % complete on drive /dev/sg0
Sequential Test 45 % complete on drive /dev/sg0
Sequential Test 50 % complete on drive /dev/sg0
Sequential Test 55 % complete on drive /dev/sg0
Sequential Test 60 % complete on drive /dev/sg0
Sequential Test 65 % complete on drive /dev/sg0
Sequential Test 70 % complete on drive /dev/sg0
Sequential Test 75 % complete on drive /dev/sg0
Sequential Test 80 % complete on drive /dev/sg0
Sequential Test 85 % complete on drive /dev/sg0
Sequential Test 90 % complete on drive /dev/sg0
Sequential Test 95 % complete on drive /dev/sg0
Generic Long Test PASSED on drive /dev/sg0

Harddisk #2

De harde schijf is een Seagate ST41650N

Hier wat test info van de schijf, aangesloten op een linux pc.

Drive information:
/dev/sg1 [=/dev/sdb  bus0 ch=0 target=1 lun=0]
/dev/sg1
Vendor = SEAGATE
Product = ST41650
Version = 5938
Serial Number = 00009282
Copyright = Copyright (c) 1991 Seagate All rights reserved
SCSI Firmware = 75905938
Servo RAM Release = 75905938
Servo ROM Release = 75905137
Servo RAM Date = O
Servo ROM Date =
Blocksize = 512, Highblock = 2780029, Capacity = 1390 MB
-this is a Seagate drive
-this drive does not support DST
-Mode Page Settings [current value (default)]:
-WCE bit = 0 (0)
-RCD bit = 0 (0)
-AWRE bit = 0 (0)
-ARRE bit = 0 (0)
-DExcpt bit = 0 (1)
-Number of cache segments = 1 (4)
-DLM bit = 0 (0)
-DTOLI bit = 0 (0)

JVDWSM30:~# ./st -t 100 /dev/sg1
Drive /dev/sg1 does not support DST - generic short test will be run
Starting 100 % Generic Short Test on drive /dev/sg1 (^C will abort test)
-Starting 30 second sequential reads from block 0 on drive /dev/sg1
VERIFY  failed on block 1688   Sense data = 03/11/00
Generic Short Test FAILED on drive /dev/sg1

JVDWSM30:~# ./st -T 100 /dev/sg1
Drive /dev/sg1 does not support DST - generic long test will be run
Starting generic long (full sequential verify) test (2780029 blocks)
		on drive /dev/sg1 (^C will abort test)
Sequential Test 5 % complete on drive /dev/sg1
Sequential Test 10 % complete on drive /dev/sg1
Sequential Test 15 % complete on drive /dev/sg1
Sequential Test 20 % complete on drive /dev/sg1
Sequential Test 25 % complete on drive /dev/sg1
Sequential Test 30 % complete on drive /dev/sg1
Sequential Test 35 % complete on drive /dev/sg1
Sequential Test 40 % complete on drive /dev/sg1
Sequential Test 45 % complete on drive /dev/sg1
Sequential Test 50 % complete on drive /dev/sg1
Sequential Test 55 % complete on drive /dev/sg1
Sequential Test 60 % complete on drive /dev/sg1
Sequential Test 65 % complete on drive /dev/sg1
Sequential Test 70 % complete on drive /dev/sg1
Sequential Test 75 % complete on drive /dev/sg1
Sequential Test 80 % complete on drive /dev/sg1
Sequential Test 85 % complete on drive /dev/sg1
Sequential Test 90 % complete on drive /dev/sg1
Sequential Test 95 % complete on drive /dev/sg1
Generic Long Test PASSED on drive /dev/sg1

Harddisk #3

De harde schijf is een Seagate ST41650N

Hier wat test info van de schijf, aangesloten op een linux pc.

Drive information:
/dev/sg2 [=/dev/sdc  bus0 ch=0 target=2 lun=0]
/dev/sg2
Vendor = SEAGATE
Product = ST41650
Version = 5938
Serial Number = 00009373
Copyright = Copyright (c) 1991 Seagate All rights reserved
SCSI Firmware = 75905938
Servo RAM Release = 75905938
Servo ROM Release = 75905137
Servo RAM Date =
Servo ROM Date = v
Blocksize = 512, Highblock = 2780029, Capacity = 1390 MB
-this is a Seagate drive
-this drive does not support DST
-Mode Page Settings [current value (default)]:
-WCE bit = 0 (0)
-RCD bit = 0 (0)
-AWRE bit = 0 (0)
-ARRE bit = 0 (0)
-DExcpt bit = 1 (1)
-Number of cache segments = 4 (4)
-DLM bit = 0 (0)
-DTOLI bit = 0 (0)

JVDWSM30:~# ./st -t 100 /dev/sg2
Drive /dev/sg2 does not support DST - generic short test will be run
Starting 100 % Generic Short Test on drive /dev/sg2 (^C will abort test)
-Starting 30 second sequential reads from block 0 on drive /dev/sg2
-Starting 30 second sequential reads to end of disk on drive /dev/sg2
-Starting 30 second random reads on drive /dev/sg2
-Starting 30 second random seeks on drive /dev/sg2
Generic Short Test PASSED on drive /dev/sg2

JVDWSM30:~# ./st -T 100 /dev/sg2
Drive /dev/sg2 does not support DST - generic long test will be run
Starting generic long (full sequential verify) test (2780029 blocks)
		on drive /dev/sg2 (^C will abort test)
Sequential Test 5 % complete on drive /dev/sg2
Sequential Test 10 % complete on drive /dev/sg2
Sequential Test 15 % complete on drive /dev/sg2
Sequential Test 20 % complete on drive /dev/sg2
Sequential Test 25 % complete on drive /dev/sg2
Sequential Test 30 % complete on drive /dev/sg2
Sequential Test 35 % complete on drive /dev/sg2
Sequential Test 40 % complete on drive /dev/sg2
Sequential Test 45 % complete on drive /dev/sg2
Sequential Test 50 % complete on drive /dev/sg2
Sequential Test 55 % complete on drive /dev/sg2
Sequential Test 60 % complete on drive /dev/sg2
Sequential Test 65 % complete on drive /dev/sg2
Sequential Test 70 % complete on drive /dev/sg2
Sequential Test 75 % complete on drive /dev/sg2
Sequential Test 80 % complete on drive /dev/sg2
Sequential Test 85 % complete on drive /dev/sg2
Sequential Test 90 % complete on drive /dev/sg2
Sequential Test 95 % complete on drive /dev/sg2
Generic Long Test PASSED on drive /dev/sg2
