HP Color LaserJet 5500dn


Dit apparaat is niet meer in mijn bezit.

HP Color LaserJet 5500dn

Typenummer: C9657A

Product features:

Feature Characteristics
Performance
  • 21 pages per minute (ppm)
  • Prints on Color LaserJet transparencies and glossy paper
Memory
  • 96 megabytes (MB) of synchronous dynamic random access memory (SDRAM) (160 MB in the HP Color LaserJet 5500dtn and 5500hdn printers)
  • Can be expanded to 512 MB (The maximum usable and recognizable RAM configuration is 416 MB)
  • Optional hard disk drive (included with the HP Color LaserJet 5500hdn printer)

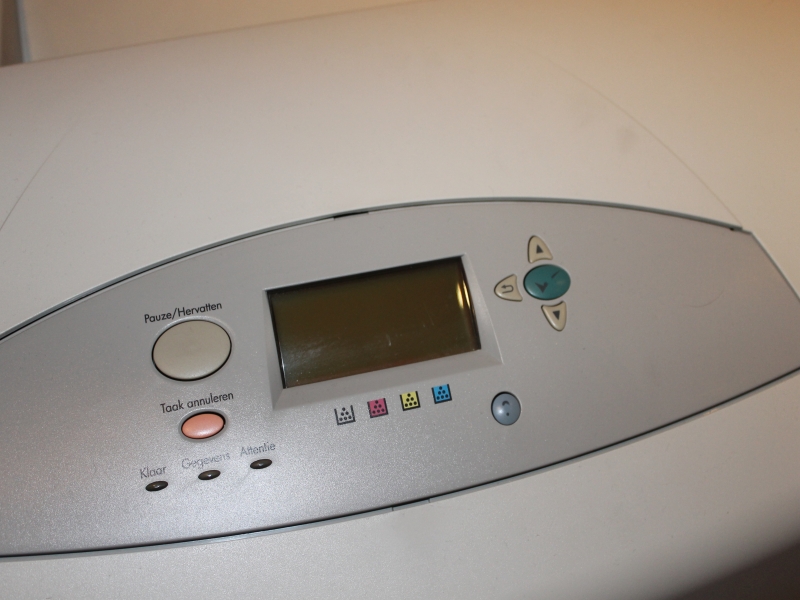

User interface
  • Graphic display on control panel
  • Enhanced Help with animated graphics
  • Embedded Web server to access support and order supplies (network-connected printers)
Supported printer personalities
  • HP PCL 6
  • HP PCL 5c
  • PostScript Level 3 emulation
  • Automatic language switching
Storage features
  • Job retention (for printers with hard disks)
  • Fonts and forms
  • Personal identification number (PIN) printing (for printers with hard disks)
Environmental features
  • PowerSave setting
  • High content of recyclable components and materials
  • Energy Star compliant
Fonts
  • 80 internal fonts available for both PCL and PostScript emulation
  • 80 printer-matching screen fonts in TrueType format available with the software solution
  • Supports forms and fonts on the disk using HP Web Jetadmin
Paper handling
  • Prints on paper from 77 x 127 mm (3 x 5 inches) up to 312 x 470 mm (12.3 x 18.5 inches)
  • Prints on paper with weights from 60 to 200 g/m2 (16 to 53 pound bond)
  • Prints on a wide range of media types including glossy, labels, overhead transparencies, and envelopes
  • Multiple gloss levels
  • A 500-sheet paper feeder (Tray 2) that supports paper sizes from 148 x 210 mm (5.8 x 8.3 inches) up to 297 x 432 mm (11.6 x 17 inches)
  • Optional 500-sheet paper feeder (Tray 3) that supports letter-, paper sizes from 148 x 210 mm (5.8 x 8.3 inches) up to 297 x 432 mm (11.6 x 17 inches); standard on HP Color LaserJet 5500dtn (Tray 3) and 5500hdn (Tray 3 and Tray 4) printers
  • Automatic Two-sided (duplex) printing on HP Color LaserJet 5500dn, 5500dtn, and 5500hdn printers
  • 250-sheet face-down output bin
Accessories
  • Printer hard disk, which provides storage for fonts and macros as well as job storage; standard on HP Color LaserJet 5500hdn
  • Dual inline memory modules (DIMM)
  • Printer stand (recommended for additional optional trays)
  • Optional 500-sheet paper feeder (Tray 3) that supports letter-, paper sizes from 148 x 210 mm (5.8 x 8.3 inches) up to 297 x 432 mm (11.6 x 17 inches); standard on HP Color LaserJet 5500dtn (Tray 3) and 5500hdn (Tray 3 and Tray 4) printers
  • Flash DIMM
  • Fast InfraRed (FIR) pod

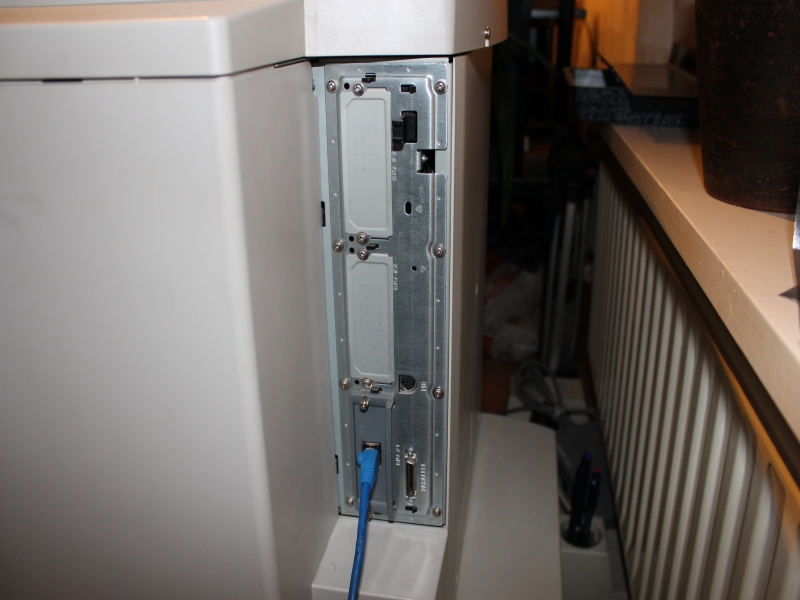

Connectivity
  • Optional enhanced input/output (EIO) network card; standard on HP Color LaserJet 5500n, 5500dn, 5500dtn, and 5500hdn printers
  • FIR connection
  • HP Web Jetadmin software
  • Standard bi-directional parallel cable interface (IEEE-1284 compliant)
Supplies
  • Supplies status page contains information on toner level, page count, and estimated pages remaining
  • No-shake cartridge design
  • Printer checks for authentic HP print cartridges at cartridge installation
  • Internet-enabled supply-ordering capabilities (using embedded Web server or printer Status and Alerts software)
Physical dimensions
Product Height Depth Width Weight
HP Color LaserJet 5500 640 mm (25.2 inches) 704 mm (27.7 inches) 577 mm (22.7 inches) 60 kg (132 lbs)
HP Color LaserJet 5500 with optional Tray 3 and stand 986 mm (38.8 inches) 704 mm (27.7 inches) 630 mm (24.8 inches) 113 kg (250 lbs)
HP Color LaserJet 5500 with optional Trays 3 and 4 and stand 1119 mm (44 inches) 704 mm (27.7 inches) 630 mm (24.8 inches) 128 kg (283 lbs)
Space requirements
Space requirements (printer only)
  • Width - 628 mm (25 inches)
  • Depth - 1090 mm (43 inches)
  • Height - 940 mm (37 inches)
500-sheet paper feeder dimensions
For each additional 500-sheet paper feeder installed, add the height from the list below to the height of the printer.
  • Width - 578 mm (22.8 inches)
  • Depth - 662 mm (26.2 inches)
  • Height - 132 mm (5.2 inches)
Printer stand dimensions
If the printer is on a stand, add the height from the list below to the total height. Also, note that the stand increases the overall width space requirement.
  • Width - 635 mm (25 inches)
  • Depth - 686 mm (27 inches)
  • Height - 210 mm (8.25 inches)
Supported operating systems
  • Microsoft Windows 95, 98, and Me
  • Microsoft Windows NT 4.0
  • Microsoft Windows 2000 and Windows XP
  • Apple Macintosh OS, version 8.6 to 9.xx, 10.1 or later
Minimum system requirements
  • Windows 95 (basic functions only) and 98: Pentium 90 with 16 MB RAM
  • Windows Me: Pentium 150 with 32 MB RAM
  • Windows NT 4.0: Pentium 90 with 32 MB RAM
  • Windows 2000: 133 MHz processor with 64 MB RAM
  • Windows XP: 233 MHz processor with 64 MB RAM
  • 180 MB free hard disk space for Windows computers; 160 MB for Macintosh computers
  • Mac OS 8.6, 9.0, 9.04, 9.1, 9.2, 10.1
  • Mac OS 8.6, 9.X, 10.1 or later
  • CD-ROM drive or Internet connection
  • Universal serial bus (USB) port or dedicated IEEE 1284-compliant bidirectional parallel port
Electrical specifications
WARNING: Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This might damage the printer and void the product warranty.
Power requirements
Requirements 110-Volt models 220-Volt models
Power supply 100 to127 V (+/-10%) 50 to 60 Hz (+/- 2 Hz) 220 to 240 V (+/-10%) 50 to 60 Hz (+/- 2 Hz)
Minimum recommended circuit capacity for typical product 10.1 Amps 5 Amps
Heat output Idle 181 BTU/hr 174 BTU/hr
Power consumption (combined 110V/220V)
Printer model Printing (watts) Standby (watts) Sleep (watts) Off (watts)
HP Color LaserJet 5500 556 48.5 42.3 0.15
HP Color LaserJet 5500n 562 49.1 43.4 0.15
HP Color LaserJet 5500dn 562 49.1 43.4 0.15
HP Color LaserJet 5500dtn 592 49.2 43 0.15
HP Color LaserJet 5500hdn 565 54.3 48.6 0.15
NOTE: These values are subject to change. Click here for the latest information .
Environment specifications
Factor Recommended
Temperature 15 to 27 degrees C (56 to 80 degrees F)
Humidity 10% to 70% relative humidity
Acoustic emissions
Activity level Operator (less than 1m) Bystander (1m) Sound power
Active LpAm 56 dB (A) LpAm 49 dB (A) LpAm 6.5 Bels (A)
Idle LpAm 35 dB (A) (inaudible) LpAm 33 dB (A) (inaudible) LWAd 4.9 Bels (A) (inaudible)
PowerSave LpAm N/A dB (A) LpAm N/A dB (A) LWAd N/A Bels (A)

Bouwjaar: 26 april 2004

Totaal aalntal geprinte pagina's:

  • 26-NOV-2013:
    Aantal pagina's 408653
    Aantal kleurenpagina's: 322974

Foto's:

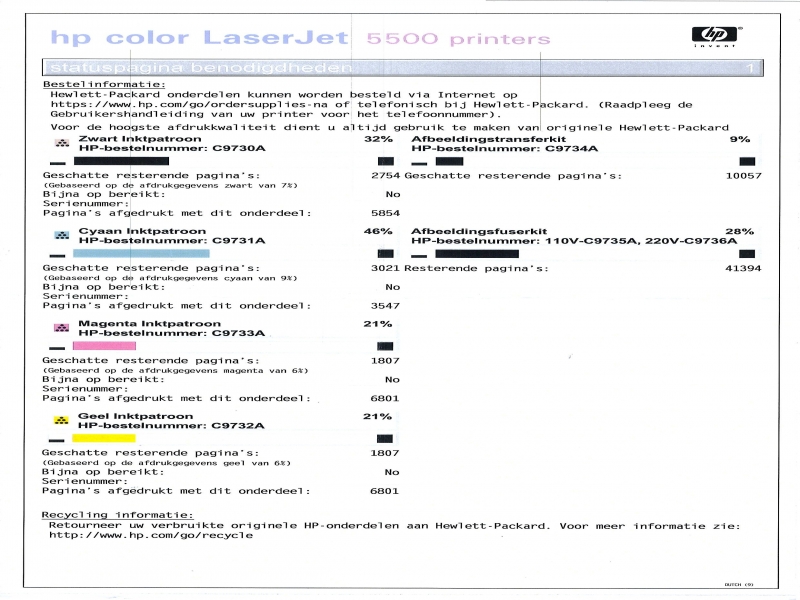

Statuspagina
Statuspagina

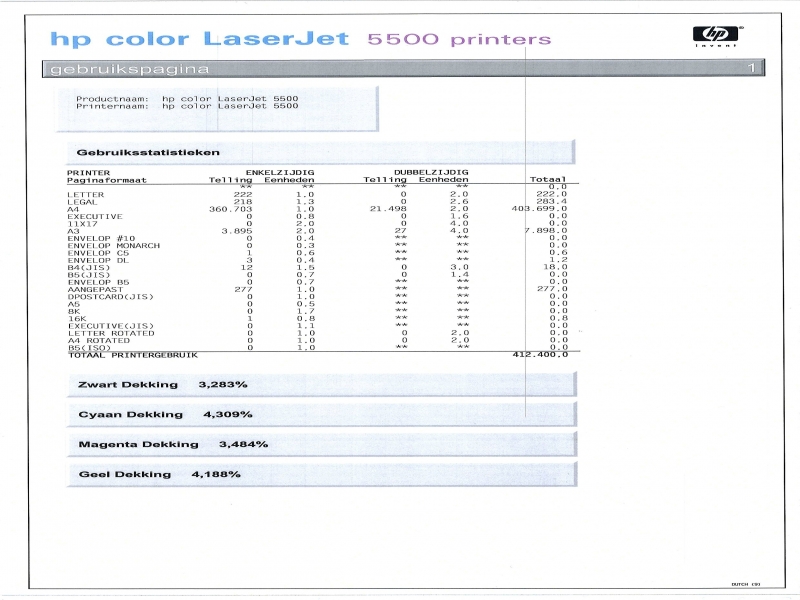

Gebruikspagina
Gebruikspagina

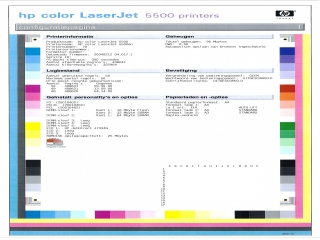

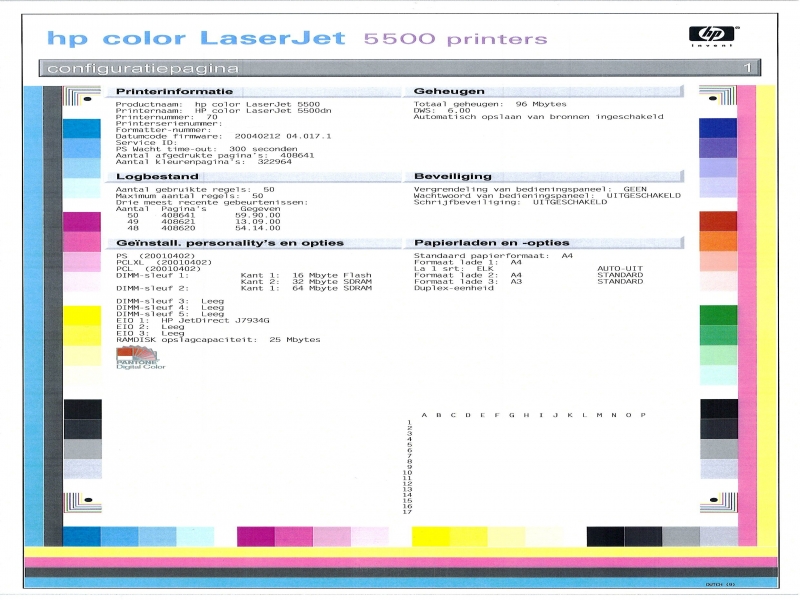

Configuratiepagina
Configuratiepagina
