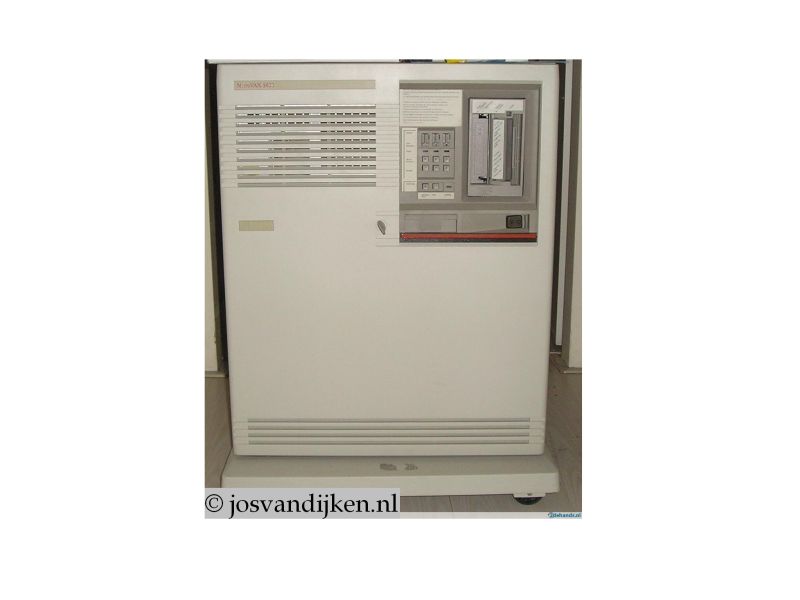

DIGITAL MicroVAX 3400


Specificaties:

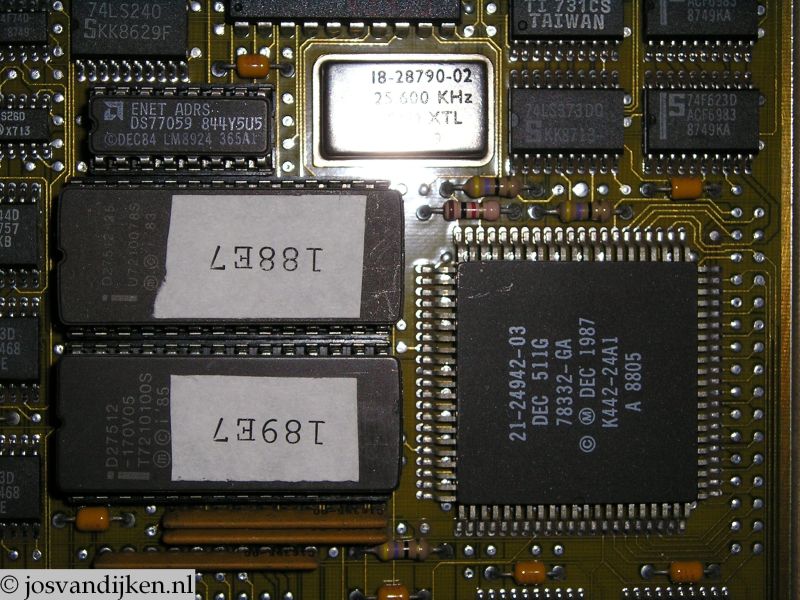

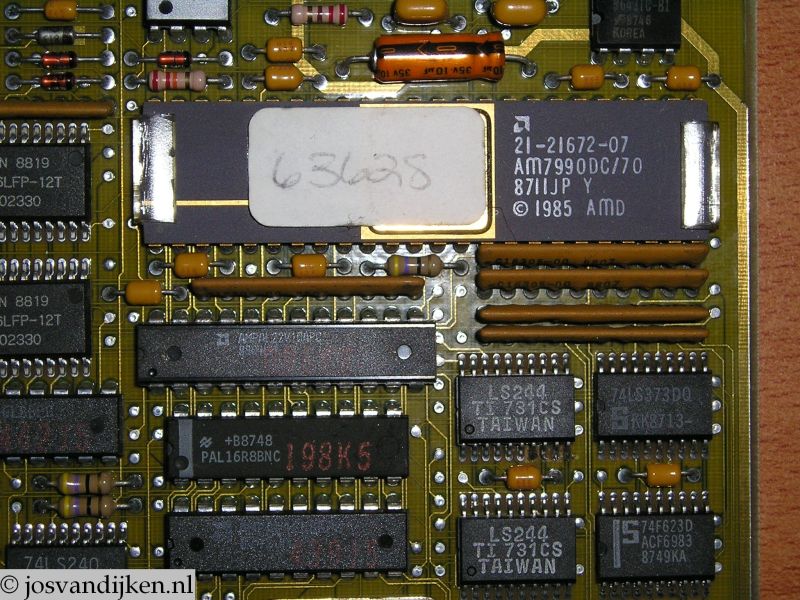

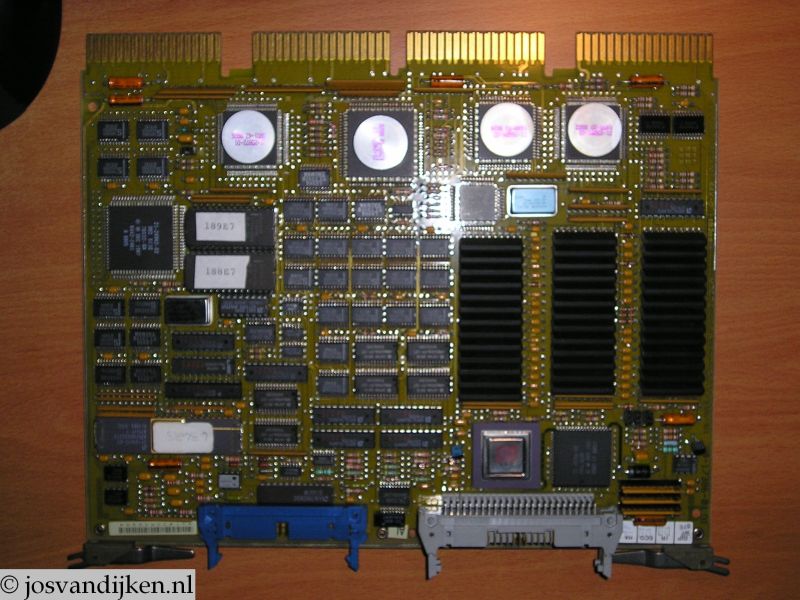

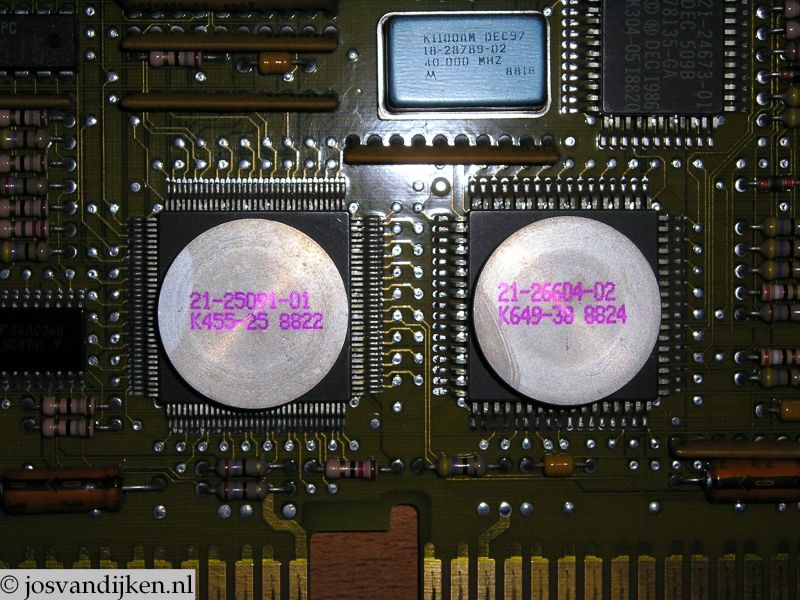

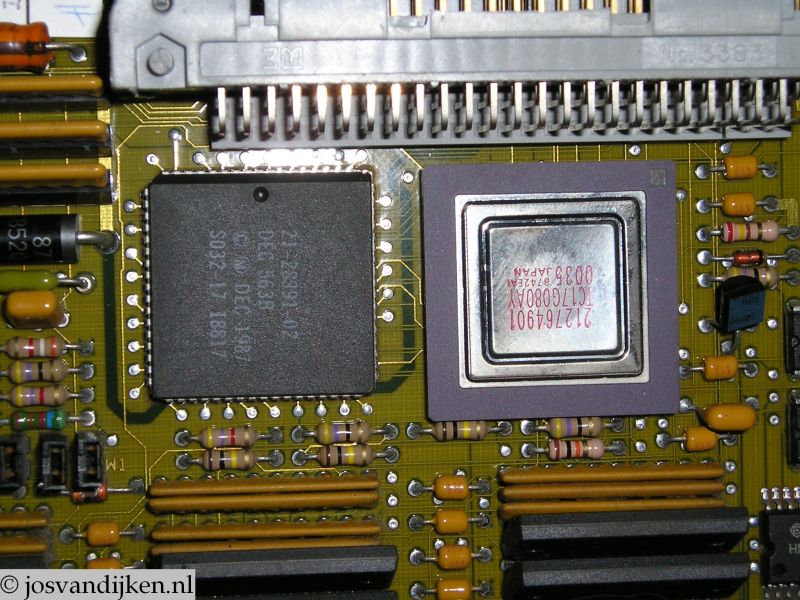

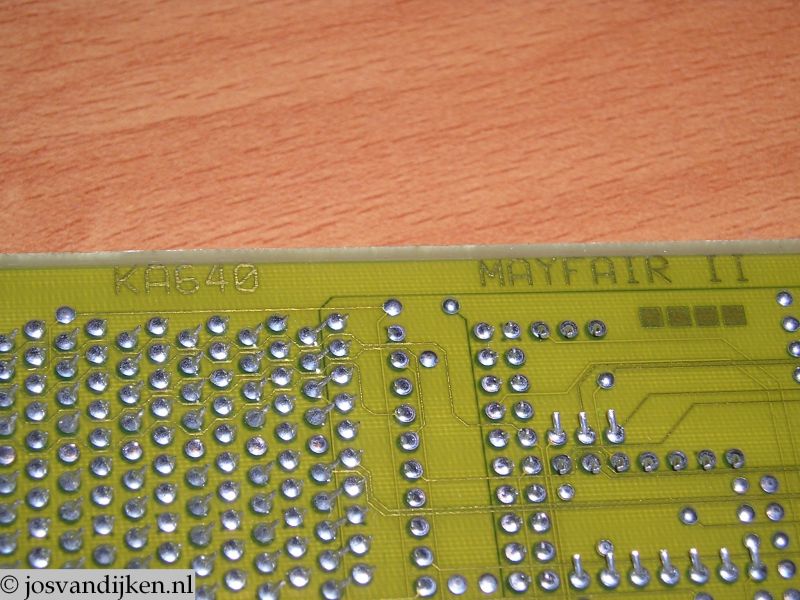

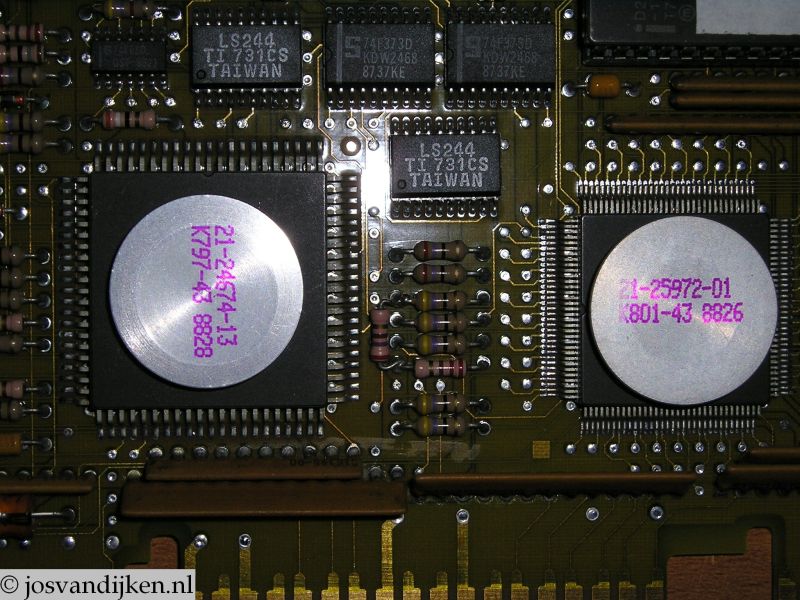

  • CPU: KA640
  • RAM: 20 MB
  • Harddisk: 2 x RF31 (381 MB, 5 1/4" half-height, DSSI)
  • Backup: TK70 DLT Drive
  • Netwerk: Ingebouwd. (AUI en BNC aansluiting)
  • OS: OpenVMS VAX V7.1

Foto's:

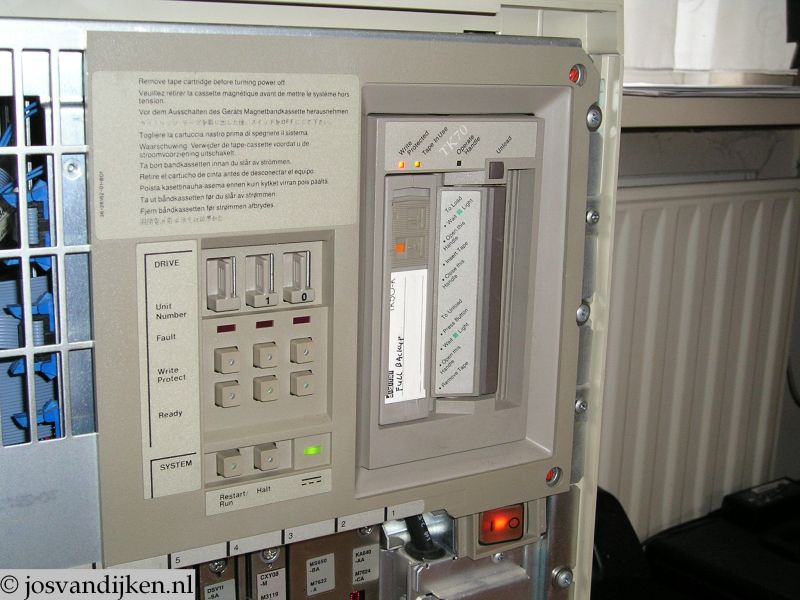

Bedieningspaneel
Bedieningspaneel

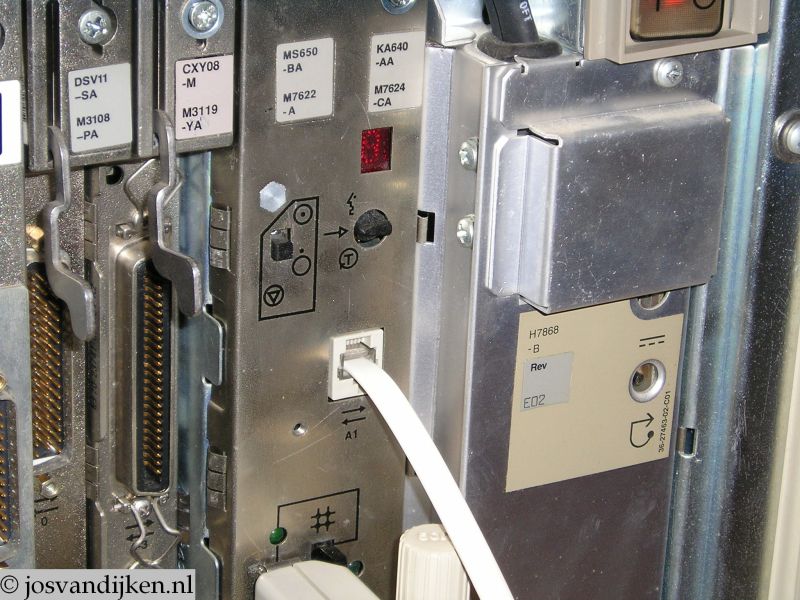

Aansluitingen
Aansluitingen

KA640-A V5.3, VMB 2.7
Performing normal system tests.
41..40..39..38..37..36..35..34..33..32..31..30..29..28..27..26..
25..24..23..22..21..20..19..18..17..16..15..14..13..12..11..10..
09..08..07..06..05..04..03..
Tests completed.
Loading system software.
No default boot device has been specified.

Available devices.
-DIA0 (RF31)
-DIA1 (RF31)
-MUA0 (TK70)
-ESA0 (08-00-2B-26-55-D1)

Device? [ESA0]:
>>>SHOW VERSION
KA640-A V5.3, VMB 2.7

>>>SHOW MEMORY
Memory 0: 00000000 to 003FFFFF, 4MB, 0 bad pages
Memory 1: 00400000 to 013FFFFF, 16MB, 0 bad pages

Total of 20MB, 0 bad pages, 106 reserved pages

>>>SHOW QBUS
Scan of Qbus I/O Space
-20000120 (760440) = 1F80 (300) DHQ11/DHV11/CXA16/CXB16/CXY08
-20000122 (760442) = F081
-20000124 (760444) = DD18
-20000126 (760446) = 0000
-20000128 (760450) = 0000
-2000012A (760452) = 0000
-2000012C (760454) = 8000
-2000012E (760456) = 0000
-200001A0 (760640) = 0002 (310) DSV11
-200001A2 (760642) = 0005
-200001A4 (760644) = AAAA
-200001A6 (760646) = 0000
-20000DE0 (766740) = 3800
-20000DE2 (766742) = 0008
-20000DE4 (766744) = 8008
-20000DE6 (766746) = 0008
-20000DE8 (766750) = 0008
-20000DEA (766752) = 0008
-20000DEC (766754) = 0008
-20000DEE (766756) = 1048
-20000DF0 (766760) = 8008
-20000DF2 (766762) = 0008
-20000DF4 (766764) = 0028
-20000DF6 (766766) = D028
-20000DF8 (766770) = 1000
-20000DFA (766772) = 8008
-20000DFC (766774) = 2821
-20000DFE (766776) = 0008
-20000E00 (767000) = 3800
-20000E02 (767002) = 00AA
-20000E04 (767004) = 009A
-20000E06 (767006) = ADEA
-20000E08 (767010) = 0018
-20000E0A (767012) = C2EA
-20000E0C (767014) = 0822
-20000E0E (767016) = A03A
-20000E10 (767020) = CBFA
-20000E12 (767022) = 0018
-20000E14 (767024) = 06A8
-20000E16 (767026) = BAEA
-20000E18 (767030) = 00CA
-20000E1A (767032) = 61B8
-20000E1C (767034) = 2821
-20000E1E (767036) = 0068
-20001940 (774500) = 0000 (260) TQK50/TQK70/TU81E/RV20/KFQSA-TAPE
-20001942 (774502) = 0BC0
-20001F40 (777500) = 0020 (004) IPCR

Scan of Qbus Memory Space

>>>SHOW DEVICE
DSSI Node 0 (DISK0)
-DIA0 (RF31)

DSSI Node 1 (DISK1)
-DIA1 (RF31)

DSSI Node 7 (*)

UQSSP Tape Controller 0 (774500)
-MUA0 (TK70)

Ethernet Adapter
-ESA0 (08-00-2B-26-55-D1)

>>>HELP
Following is a brief summary of all the commands supported by the console:

        UPPERCASE  denotes a keyword that you must type in
        |          denotes an OR condition
        []         denotes optional parameters
        <>         denotes a field that must be filled in
                   with a syntactically correct value

Valid qualifiers:
    /B /W /L /Q /INSTRUCTION
    /G /I /V /P /M
    /STEP: /N: /NOT
    /WRONG /U

Valid commands:
    DEPOSIT [<qualifiers>] <address> [<datum> [<datum>]]
    EXAMINE [<qualifiers>] [<address>]
    MOVE [<qualifiers>] <address> <address>
    SEARCH [<qualifiers>] <address> <pattern> [<mask>]
    SET BFLG <boot_flags>
    SET BOOT <boot_device>[:]
    SET HOST/DUP/DSSI <node_number> [<task>]
    SET HOST/DUP/UQSSP </DISK | /TAPE> <controller_number> [<task>]
    SET HOST/DUP/UQSSP <physical_CSR_address> [<task>]
    SET HOST/MAINTENANCE/UQSSP/SERVICE <controller_number>
    SET HOST/MAINTENANCE/UQSSP <physical_CSR_address>
    SET LANGUAGE <language_number>
    SHOW BFLG
    SHOW BOOT
    SHOW DEVICE
    SHOW DSSI
    SHOW ETHERNET
    SHOW LANGUAGE
    SHOW MEMORY [/FULL]
    SHOW QBUS
    SHOW RLV12
    SHOW UQSSP
    SHOW VERSION
    HALT
    INITIALIZE
    UNJAM
    CONTINUE
    START <address>
    REPEAT <command>
    X <address> <count>
    FIND [/MEMORY | /RPB]
    TEST [<test_code> [<parameters>]]
    BOOT [/R5:<boot_flags> | /<boot_flags>] [<boot_device>[:]]
    NEXT [count]
    CONFIGURE
    HELP

>>>SET HOST/DUP/DSSI 0
Starting DUP server...

DSSI Node 0 (DISK0)
Copyright (C) 1990  Digital Equipment Corporation
PRFMON V1.0  D  3-OCT-1990 15:05:42
DRVEXR V2.0  D  3-OCT-1990 15:05:42
DRVTST V2.0  D  3-OCT-1990 15:05:42
HISTRY V1.1  D  3-OCT-1990 15:05:42
DIRECT V1.0  D  3-OCT-1990 15:05:42
ERASE  V2.0  D  3-OCT-1990 15:05:42
VERIFY V1.0  D  3-OCT-1990 15:05:42
DKUTIL V1.0  D  3-OCT-1990 15:05:42
PARAMS V2.0  D  3-OCT-1990 15:05:42
Total of 9 programs.

Task Name? params
Copyright (C) 1990  Digital Equipment Corporation

PARAMS> HELP
  ENABLE MSCP
  EXIT
  HELP
  LOCATE
  SET {parameter | .} value
  SHOW {parameter | . | /class}
    /ALL     /CONST   /DRIVE
    /SERVO   /DUP     /PROFILE
    /SCS     /MSCP
  STATUS [type]
    CONFIG   LOGS     DUMP
    THREADS  MEMORY   SEEKS
    MSCP     PATHS    DATALINK
  WRITE
  ZERO counter
    ALL      MSCP     SEEKS

PARAMS> STATUS

Configuration:
  Node DISK0  is an RF31 controller
  Software RFX V246 built on  3-OCT-1990 15:05:42
  Electronics module name is EN04812433
  Unit is inoperative, error code A508(X)
  Last known unit failure code A508(X)
  In 59322 power-on hours, power has cycled 91 times
  System up time is   0 00:03:40.45
  System time is  3-OCT-1990 15:09:22

Log History:

   Pid  TCB Addr  Process Name     WQ Addr   State  Pri      CPU
     0  FFFFA86C  NULL             00000000   RDY   255   0 00:03:33.87
     1  FF843B7A  PERIODICS        FFFF8DAA   BLK   254   0 00:00:00.02
    66  FF84462C  PRFMON           FF8445DC   IDL   130   0 00:00:00.00
    67  FF84467C  DRVEXR           FF84462C   IDL   124   0 00:00:00.00
    68  FF8446CC  DRVTST           FF84467C   IDL   121   0 00:00:00.00
    69  FF84471C  HISTRY           FF8446CC   IDL   118   0 00:00:00.00
    70  FF84476C  DIRECT           FF84494C   IDL   115   0 00:00:00.00
    71  FF8447BC  ERASE            FF84471C   IDL   112   0 00:00:00.00
    72  FF84480C  VERIFY           FF8447BC   IDL   109   0 00:00:00.00
    73  FF84485C  DKUTIL           FF84480C   IDL   106   0 00:00:00.00
    74  FF8448AC  PARAMS           FFFFA8C2   CUR   103   0 00:00:00.13
     2  FF84499C  MSCP$DUP         FFFF934C   TIM    28   0 00:00:00.08
     3  FF845250  SCS$DIRECTORY    FFFF947A   BLK    25   0 00:00:00.00
     4  FF845AE2  MSCP$COPY        FFFF94A6   BLK    22   0 00:00:00.00
     5  FF846332  MSCP$BBR         FFFF93D6   BLK    19   0 00:00:00.00
     6  FF846B82  PPT$DISK         FFFF89BA   BLK    16   0 00:00:06.58
     7  FF8473D2  SCS$DSSI         FFFF8E14   BLK    13   0 00:00:00.13
     8  FF84C49E  MSCP$DISK        FFFF90D0   BLK    14   0 00:00:00.00

Pool statistics:
            Fragments: 1
     Total bytes free: 20656
   Largest block free: 20656

Seek statistics:
           Interval: 120 seconds
        Total seeks: 0
     On-track seeks: 0
 On-cylinder switch: 0
Seek length histogram (cylinder ranges):

MSCP statistics:
          Interval: 220 seconds
      I/O Commands: 0
 Primary revectors: 0
Tertiary revectors: 0
   Max Queue Depth: 0
 Queue Depth Histogram:
 Commands Processed Histogram:
  GetUnit:          2:**
   SetCon:          1:*
 Blocks Accessed Histogram (cylinder ranges):
 Read Lengths Histogram (block count ranges):
 Write Lengths Histogram (block count ranges):

Datalink Counters:
    Interval: 221 seconds
  Pkts Rcv'd:        239:***********************
  Pkts Xmt'd:        237:***********************
  Naks Rcv'd:        295:*****************************
  Naks Xmt'd:          0:
Resets Rcv'd:        504:**************************************************
Resets Xmt'd:          0:
 No response:        295:*****************************
  Duplicates:          0:
    Unrecogs:          0:

VC Close Log History:
  1: VC closed from ID  0 to ID  7, at  3-OCT-1990 15:06:09.
     Received a Start when VC was open.

  2: VC closed from ID  0 to ID  7, at  3-OCT-1990 15:06:32.
     Datalink layer exhausted retries.


  ID  Path Block     Remote Node      DGS_S      DGS_R      MSGS_S     MSGS_R
  -- ------------  ---------------  ---------- ---------- ---------- ----------
   0 PB  FF84824E   Internal Path            0          0          0          0
   1 PB  FF848382  DISK1  RFX V246           0          0          0          0
   7 PB  FF84871E  7      VMB BOOT           0          0        268        268

PARAMS>

>>>SHOW BOOT
MUA0
>>>SET BOOT DIA1
>>>SHOW BOOT
DIA1
>>>BOOT
(BOOT/R5:0 DIA1)


  2..
-DISK1$DIA1
  1..0..

VAX/VMS Version V5.2     Major version id = 1 Minor version id = 0

PLEASE ENTER DATE AND TIME (DD-MMM-YYYY  HH:MM)  15-JUL-2008 12:40
$!  Copyright (c) 1989 Digital Equipment Corporation.  All rights reserved.


    The connecting computer systems and services belong to
    Jos van Dijken www.josvandijken.nl.

    Unauthorised use and/or misuse of these systems and services may
    constitute a breach of Dutch Criminal Law (paragraphs 225 and/or 350),
    and could lead to legal disciplinairy action.


Username: SYSTEM
Password:

    Last interactive login on Monday, 14-JUL-2008 14:44
    Last non-interactive login on Tuesday, 15-JUL-2008 12:42

 SNIM01 $ HELP
HELP

   The   HELP   command   invokes   the  VMS  HELP  Facility  to  display
   information about a VMS command or topic.  In response to the "Topic?"
   prompt, you can:

      o Type  the  name of the command  or topic for which you need help.

      o Type  INSTRUCTIONS  for more detailed  instructions on how to use
        HELP.

      o Type  HINTS  if you are not  sure of the  name  of the command or
        topic for which you need help.

      o Type a question mark (?) to redisplay the most recently requested
        text.

      o Press the RETURN key one or more times to exit from HELP.



Press RETURN to continue ...

   You  can  abbreviate any  topic name, although ambiguous abbreviations
   result in all matches being displayed.


  Additional information available:

  :=         =          @          ACCOUNTING ALLOCATE   ANALYZE    APPEND
  ASSIGN     ATTACH     AUTHORIZE  AUTOGEN    BACKUP     CALL       CANCEL
  CLOSE      CONNECT    CONTINUE   CONVERT    COPY       CREATE
  DEALLOCATE DEASSIGN   DEBUG      DECK       DEFINE     DELETE     DEPOSIT
  DIFFERENCES           DIRECTORY  DISCONNECT DISKQUOTA  DISMOUNT   DUMP
  EDIT       ENCRYPT    EOD        EOJ        Errors     EXAMINE    EXCHANGE
  EXIT       FDL        GOSUB      GOTO       HELP       Hints      IF
  INITIALIZE INQUIRE    INSTALL    Instructions          JOB        LATCP
  Lexicals   LIBRARY    LICENSE    Line_editing          LINK       LOGIN
  LOGOUT     MACRO      MAIL       MERGE      MESSAGE    MONITOR    MOUNT
  NCP        NCS        ON         OPEN       PASSWORD   PATCH      PHONE
  PRINT      PURGE      Queues     READ       RECALL     RECOVER    RENAME
  REPLY      REQUEST    RETURN     RMS        RTL_Routines          RUN
  RUNOFF     SEARCH     SET        SHOW       SORT       SPAWN      Specify


Press RETURN to continue ...

  START      STOP       SUBMIT     Symbol_Assign         SYNCHRONIZE
  SYSGEN     SYSMAN     System_Services       TFF        TYPE       UNLOCK
  V52_NewFeatures       VIEW       WAIT       WRITE


Topic?

  SNIM01 $ SHOW SYSTEM

VAX/VMS V5.2  on node SNIM01  16-JUL-2008 23:38:35.15   Uptime  0 00:52:41
  Pid    Process Name    State  Pri      I/O       CPU       Page flts Ph.Mem
00000081 SWAPPER         HIB     16        0   0 00:00:00.42         0      0
00000086 ERRFMT          HIB      8      118   0 00:00:00.53        82    117
00000087 OPCOM           HIB      8      100   0 00:00:00.65       284    143
00000088 AUDIT_SERVER    HIB     10       48   0 00:00:00.80      1360    189
00000089 JOB_CONTROL     HIB      9      660   0 00:00:02.80       261    263
0000008A CONFIGURE       HIB      9       31   0 00:00:00.19       100    152
0000008B SYMBIONT_0001   HIB      6       71   0 00:00:00.47       217    128
0000008C NETACP          HIB      9       69   0 00:00:02.38       385    561
0000008D EVL             HIB      6       80   0 00:00:00.70      1094     48  N
0000008E REMACP          HIB      8       25   0 00:00:00.10        64     33
00000090 SYSTEM          CUR      7     2975   0 00:00:48.12      7908    249

SNIM01 $ SHOW NETWORK

VAX/VMS Network status for local node  1.1 JVDVAX on 16-JUL-2008 23:39:21.80

This is a nonrouting node, and does not have any network information.
The designated router for JVDVAX is node    0 JVDVAX.

 SNIM01 $ SHOW STATUS

  Status on  16-JUL-2008 23:39:40.36     Elapsed CPU :   0 00:00:48.26
  Buff. I/O :     2547    Cur. ws. :     256    Open files :         0
  Dir. I/O :       447    Phys. Mem. :   218    Page Faults :     7966

SNIM01 $ SHOW DEVICE

Device                  Device           Error    Volume         Free  Trans Mnt
 Name                   Status           Count     Label        Blocks Count Cnt
DISK0$DIA0:             Online               0
DISK1$DIA1:             Mounted              0  VAXVMSRL052     324906   128   1

Device                  Device           Error    Volume         Free  Trans Mnt
 Name                   Status           Count     Label        Blocks Count Cnt
SNIM01$MUA0:            Online               0

Device                  Device           Error
 Name                   Status           Count
OPA0:                   Online               0
RTA0:                   Offline              0
RTB0:                   Offline              0
RTC0:                   Offline              0
TXA0:                   Online               0
TXA1:                   Online spooled       0
                        alloc
TXA2:                   Online               0
TXA3:                   Online               0
TXA4:                   Online               0
TXA5:                   Online               0
TXA6:                   Online               0
TXA7:                   Online               0

Device                  Device           Error
 Name                   Status           Count
ESA0:                   Online               0
ESA1:                   Online               0
PIA0:                   Online               2
PTA0:                   Online               1
WSA0:                   Offline              0

SNIM01 $

Update 04-AUG-2008

Harddisk DIA0 heeft een flinke pedagogische tik gekregen, en heeft in de vrees voor nog een tik maar besloten om weer te gaan werken. Probleem was een vastzittende Head-Assembly in de HDA.

Bij het booten vanaf DIA0 bleek dat ook daar een VMS installatie op stond. Deze heb ik nu vervangen door een verse VMS 7.1 installatie:

226276> factory  Factory will RESTART controller. Are you sure? (y/n) y

FLASH Boot Utility Version A1    FBOOT-I-LOAD, Load sequence commencing -
Type CTRL/C to abort
FBOOT-I-LOADING, Loading HSD10 rev C294 code to 0x80020000:0x8007f310
FBOOT-I-STARTING, Executing loaded code

Controller  HSD10
Serial No.: 15204
Firmware Revision: C294
Date/Time: 01-JAN-1990 00:00:00
Uptime:  0 DAYS  00:00:00
Processor DRAM size:  1   MB
Processor Free Pool:  236 KB
Device Type       = HS
Spinup Delay = 5 Seconds
Redundant Mode    = OFF
SCS Parameters
Nodename:  226276
System ID: 226276
DISK_ALCS: 0
TAPE_ALCS: 0
MAX_HOSTS: 4
DATREQ_PR: LOW
Cache     32 MB read cache
Ports
Port 0:   DSSI, Disabled
Port 1:   SCSI, id= 7, power_on_reset=ON

226276>
01-JAN-1990 00:00:00 0000    INIT   Event Logger Startup
01-JAN-1990 00:00:00 4710    INIT   SCSI Port 1, Bus Power-On Reset

226276>
01-JAN-1990 00:00:05 2705 SCSIDR0   Port 1, SCSI Reset Detected
01-JAN-1990 00:00:05 2713 SCSIDR0   Port 1 Chip Reset

226276> Set Port 0 /Enable

226276> autoconfig
Creating Type   Inquiry Data                      Device Attributes
--------------------------------------------------------------------------------
D160     CDROM  TOSHIBA   CD-ROM    1001          Sync Rmv

226276> map unit d160 dia6

226276> show dev
Name   Pcnt  Used by     Type    Inquiry Data            Device Attributes
--------------------------------------------------------------------------------
D160   1     DIA6        CDROM   TOSHIBA   CD-ROM    1001    Sync Rmv

No Stripe sets Found.
No Mirror sets Found.
No Tapes Found.

Name       Member    Status    Host      Set-members/Modifiers
--------------------------------------------------------------------------------
DIA6       D160 (1)  AVAIL               online, cache, disconnect,
immediate, tagging, truncate,
spindown, sync_rate=10


FLASH Boot Utility Version A1    FBOOT-I-LOAD, Load sequence commencing -
Type CTRL/C to abort
FBOOT-I-LOADING, Loading HSD10 rev C294 code to 0x80020000:0x8007f310
FBOOT-I-STARTING, Executing loaded code
 Controller  HSD10
 Serial No.: 15204
 Firmware Revision: C294
 Date/Time: 01-JAN-1990 00:00:00
 Uptime:  0 DAYS  00:00:00
 Processor DRAM size:  1   MB
 Processor Free Pool:  236 KB
 Device Type       = HS
 Spinup Delay = 5 Seconds
 Redundant Mode    = OFF        SCS Parameters
 Nodename:  226276     System ID: 226276
 DISK_ALCS: 0          TAPE_ALCS: 0
 MAX_HOSTS: 4          DATREQ_PR: LOW
 Cache           32 MB read cache
Ports          Port 0:   DSSI, id= 6          Port 1:   SCSI, id= 7, power_on_reset=ON



226276>
01-JAN-1990 00:00:00 0000    INIT   Event Logger Startup
01-JAN-1990 00:00:00 4710    INIT   SCSI Port 1, Bus Power-On Reset


226276>
01-JAN-1990 00:00:05 2705 SCSIDR0   Port 1, SCSI Reset Detected
01-JAN-1990 00:00:05 2713 SCSIDR0   Port 1 Chip Reset

226276> show dev
Name   Pcnt  Used by     Type    Inquiry Data                Device Attributes
--------------------------------------------------------------------------------
D160   1     DIA6        DISK
No Stripe sets Found.
No Mirror sets Found.

No Tapes Found.    Name       Member    Status    Host      Set-members/Modifiers
--------------------------------------------------------------------------------
DIA6       D160 (1)  AVAIL               online, cache, disconnect, immediate,
tagging, truncate, spindown, sync_rate=10





KA640-A V5.3, VMB 2.7  Performing normal system tests.
41..40..39..38..37..36..35..34..33..32..31..30..29..28..27..26..
25..24..23..22..21..20..19..18..17..16..15..14..13..12..11..10..
09..08..07..06..05..04..03..  Tests completed.
>>>show dev
DSSI Node 0 (DISK0)
-DIA0 (RF31)
DSSI Node 1 (DISK1)
-DIA1 (RF31)
DSSI Node 6 (226276)
-DIA6 (HSX0)
DSSI Node 7 (*)
UQSSP Tape Controller 0 (774500)
-MUA0 (TK 70)
Ethernet Adapter  -ESA0 (08-00-2B-26-55-D1)

>>>boot dia6  (BOOT/R5:0 DIA6)
2..  -226276$DIA6
1..0..


%SYSBOOT-I-SYSBOOT Mapping the SYSDUMP.DMP on the System Disk

%SYSBOOT-W-SYSBOOT Can not map SYSDUMP.DMP on the System Disk

%SYSBOOT-W-SYSBOOT Can not map PAGEFILE.SYS on the System Disk

OpenVMS (TM) VAX Version X6NO Major version id = 1 Minor version id = 0

  PLEASE ENTER DATE AND TIME (DD-MMM-YYYY  HH:MM)  4-AUG-2008 12:30

  Configuring devices . . .
  Now configuring HSC, RF, and MSCP-served devices . . .
  Please check the names of the devices which have been configured,
  to make sure that ALL remote devices which you intend to use have  been configured.
  If any device does not show up, please take action now to make it  available.

  Available device  MUA0:
  device type TK70  Available device  226276$DIA6:
  device type HSX00  Available device  DISK1$DIA1:
  device type RF31  Available device  DISK0$DIA0:
  device type RF31     Enter "YES" when all needed devices are available: YES



%BACKUP-I-IDENT, Stand-alone BACKUP V7.1; the date is  4-AUG-2008 12:32:03.03

$ backup/image/verify 226276$DIA6:VMS071.B/save_set DISK0$DIA0:
%BACKUP-I-STARTVERIFY, starting verification pass
%BACKUP-I-PROCDONE, operation completed.  Processing finished at  4-AUG-2008 12:38:23.25


If you do not want to perform another standalone BACKUP operation,
use the console to halt the system.
If you do want to perform another standalone BACKUP operation,
ensure the standalone application volume is online and ready.
Enter "YES" to continue:

?02 EXT HLT
PC = 80E65347


>>>boot dia0
(BOOT/R5:0 DIA0)
2..  -DISK0$DIA0
1..0..

%SYSBOOT-I-SYSBOOT Mapping the SYSDUMP.DMP on the System Disk
%SYSBOOT-W-SYSBOOT Can not map SYSDUMP.DMP on the System Disk
%SYSBOOT-I-SYSBOOT Mapping PAGEFILE.SYS on the System Disk
%SYSBOOT-I-SYSBOOT SAVEDUMP parameter not set to protect the PAGEFILE.SYS

OpenVMS (TM) VAX Version BI71-6NO Major version id = 1 Minor version id = 0
               OpenVMS VAX V7.1 Installation Procedure
	       Model: MicroVAX 3400 Series
	       System device: RF31 - _DISK0$DIA0:
	       Free Blocks: 681198
	       CPU type: 10-01

	       * Please enter the date and time (DD-MMM-YYYY HH:MM) 4-aug-2008 12:40

	       *********************************************************

%SYSTEM-W-TZGMT, your local timezone has defaulted to GMT
%SYSTEM-I-SETTZ, to set your local timezone use:
$ @SYS$MANAGER:UTC$TIME_SETUP.COM
*********************************************************
On MIN or UPGRADE system startup - CLUE is not run.
%  OPCOM   4-AUG-2008 12:40:12.77
%  Operator _OPA0: has been enabled, username SYSTEM
%  OPCOM   4-AUG-2008 12:40:12.88
%  Operator status for operator _OPA0:  CENTRAL, PRINTER, TAPES, DISKS, DEVICES, CARDS,
NETWORK, CLUSTER, SECURITY,  LICENSE, OPER1, OPER2, OPER3, OPER4, OPER5, OPER6, OPER7,
OPER8, OPER9, OPER10, OPER11, OPER12
%  OPCOM   4-AUG-2008 12:40:13.75
%  Logfile has been initialized by operator _OPA0:  Logfile is
SYS$SYSROOT:[SYSMGR]OPERATOR.LOG;1
%  OPCOM   4-AUG-2008 12:40:13.79
%  Operator status for operator SYS$SYSROOT:[SYSMGR]OPERATOR.LOG;1  CENTRAL, PRINTER,
TAPES, DISKS, DEVICES, CARDS, NETWORK, CLUSTER, SECURITY,  LICENSE, OPER1, OPER2, OPER3,
OPER4, OPER5, OPER6, OPER7, OPER8, OPER9, OPER10,  OPER11, OPER12
%SYSTEM-I-BOOTUPGRADE, security auditing disabled
%  OPCOM   4-AUG-2008 12:40:15.93
%  Message from user JOB_CONTROL
%JBC-E-OPENERR, error opening SYS$SYSROOT:[SYSEXE]QMAN$MASTER.DAT;
%  OPCOM   4-AUG-2008 12:40:15.95
%  Message from user JOB_CONTROL  -RMS-E-FNF, file not found
%LICENSE-F-EMTLDB, license database contains no license records
%SYSTEM-I-BOOTUPGRADE, security server not started
%  OPCOM   4-AUG-2008 12:40:23.38
%  Message from user SYSTEM
%LICENSE-E-NOAUTH, DEC VAX-VMS use is not authorized on this node
-LICENSE-F-NOLICENSE, no license is active for this software product
-LICENSE-I-SYSMGR, please see your system manager
%LICENSE-E-NOAUTH, DEC VAX-VMS use is not authorized on this node
-LICENSE-F-NOLICENSE, no license is active for this software product
-LICENSE-I-SYSMGR, please see your system manager  Startup processing continuing...
        If this system disk is to be used in a cluster with multiple system
disks, then each system disk must have a unique volume label.  Any
 nodes having system disks with duplicate volume labels will fail to
boot into the cluster.
 You can indicate a volume label of 1 to 12 characters in length.  If you
   want to use the default name of OpenVMS071, press RETURN in response
     to the next question.    * Enter the volume label for this system disk [OpenVMS071]:
* Enter name of drive holding the OpenVMS distribution media: dia6
* Is the OpenVMS media ready to be mounted? [N] y
If your kit is on an HSC device then you must use the HSC node name
in the device name, as in HSC001$DJA1:
If your kit is a DSSI device then you must use the DSSI node name
in the device name, as in RF001$DIA1:
* Enter name of drive holding the OpenVMS distribution media: 11  226276$dia1 6
* Is the OpenVMS media ready to be mounted? [N] y
%MOUNT-I-MOUNTED, VAXVMS071 mounted on _226276$DIA6:
Select optional software you want to install.
You can install one
or more of the following OpenVMS or DECwindows components:
o OpenVMS library                              -  52200 blocks
o OpenVMS optional                             -  19000 blocks
o OpenVMS Help Message                         -  10400 blocks
o OpenVMS Management Station                   -  20000 blocks
o DECwindows base support                      -   4400 blocks
o DECwindows workstation support               -  23800 blocks
-  75 dots per inch video fonts          -    (included)
- 100 dots per inch video fonts          -   6200 blocks
o DECnet-Plus networking                       -  80000 blocks
Space remaining on system disk:  681018 blocks
* Do you want to install the OpenVMS library files? (Y/N) y
Space remaining on system disk:  628818 blocks
* Do you want to install the OpenVMS optional files? (Y/N) y
Space remaining on system disk:  609818 blocks
The Help Message utility (MSGHLP) provides online explanations
 and user actions for OpenVMS messages in place of the hardcopy
OpenVMS System Messages and Recovery Procedures Reference Manual,
which is now separately orderable.
The MSGHLP database file, MSGHLP$LIBRARY.MSGHLP$DATA,
consumes approximately 10400 blocks and will be
placed by default on your system disk in SYS$COMMON:[SYSHLP]
 unless you specify an alternate device when prompted.
* Do you want to install the MSGHLP database? (Y/N) y
You can install this database on your system disk in SYS$COMMON:[SYSHLP]
or on an alternate device.  If you specify an alternate device, but no
directory, MSGHLP$LIBRARY.MSGHLP$DATA is placed in [HELP_MESSAGE].  When
prompted, take the default of the system disk or specify an alternate
device using this format:
device:[directory]
* Where do you want to install the MSGHLP database?[SYS$COMMON:[SYSHLP]]
Space remaining on system disk:  599418 blocks
The OpenVMS Management Station is a client-server application
that provides OpenVMS system management capabilities through a
client application on a personal computer (PC) running Microsoft
Windows. The server application runs on OpenVMS systems and is
automatically installed as part of the OpenVMS operating system.
This option provides the files used to create the installation media
for the PC client software.  If you want to use the OpenVMS Management
Station, you must install these files on at least one OpenVMS system to
create the installation media, which can then be used to install the
PC client on one or more PCs.
Note: To use the OpenVMS Management Station on your PC, you must be
running Digital's PATHWORKS V5.0A for DOS and Windows (or V5.1)
software.
The OpenVMS Management Station optional files consume approximately 20000
blocks and will be placed on your system disk in SYS$COMMON:[TNT.CLIENT].
* Do you want to install the optional OpenVMS Management Station files? (Y/N) y
 Space remaining on system disk:  579418 blocks
You can select DECwindows now, or you can use the DECW$TAILOR utility
to provide or remove DECwindows support after the installation.
Some media, TK50s in particular, can be very slow when tailoring on files.
You might want to select DECwindows now and tailor off unwanted files later.
NOTE: This kit does NOT contain full DECwindows.
 To obtain full DECwindows, you must also install the separate
layered product, DECwindows Motif for OpenVMS VAX.
V1.2-3 is the minimum version of DECwindows Motif for OpenVMS VAX
that can be used with OpenVMS VAX V7.1.
The DECwindows components provided in this kit requires approximately
34400 blocks, broken down as follows:
o DECwindows base support                    -   4400 blocks
o DECwindows workstation support             -  23800 blocks
-  75 dots per inch video fonts            -    (included)
- 100 dots per inch video fonts (optional) -   6200 blocks
You must select the DECwindows base support option if
- you plan to run DECwindows software, or
- you are installing this kit on
* a workstation or
* a VAXcluster that contains workstations, or
- you want to provide font files for Xterminals.
If you are installing this kit on a system that includes Xterminals
and you do NOT select DECwindows base support, then you will have to use
the DECW$TAILOR utility to provide font files.
* Do you want the DECwindows base support? (Y/N) y
Space remaining:  575018 blocks
You must select the DECwindows workstation support option if
- you are installing this kit on
* a workstation or
* a VAXcluster that contains workstations, or
- you want to provide font files for Xterminals.
If you are installing this kit on a system that includes Xterminals
and you do NOT select DECwindows workstation support, then you will have
to use the DECW$TAILOR utility to provide font files.
* Do you want to install DECwindows workstation support? (Y/N) y
Space remaining:  551218 blocks
DECwindows workstation support includes the 75 dots per inch video fonts.
 All DECwindows applications run with 75 dots per inch video fonts.
By default, most systems startup with 75 dots per inch video fonts.
Certain applications can take advantage of 100 dots per inch video fonts.
For the VAXstation 4000 series machines, 100 dots per inch video fonts
are used by default.  If you decide not to install 100 dots per inch
video fonts, you must edit SYS$MANAGER:DECW$PRIVATE_SERVER_SETUP.COM
to force 75 dots per inch video fonts to be the default.  Otherwise,
certain applications may not space text properly.
For instructions on how to configure your system with both 75 and 100
dots per inch video fonts, see the installation guide or look at the
template command procedure SYS$MANAGER:DECW$PRIVATE_SERVER_SETUP.TEMPLATE.
* Do you want 100 dots per inch video fonts installed? (Y/N) y
Space remaining:  545018 blocks
Beginning with OpenVMS V7.1 DECnet-Plus is provided with the
OpenVMS operating system.  Digital strongly recommends that DECnet
users install DECnet-Plus.  DECnet Phase IV applications are
supported by DECnet-Plus.
DECnet Phase IV is available for separate installation.  Please see the
"OpenVMS V7.1 Release Notes" for important information regarding
 DECnet Phase IV support.
If you plan to install DECnet Phase IV do NOT select DECnet-Plus.
* Do you want to install DECnet-Plus? (Y/N) y
Space remaining on system disk:  465018 blocks
The following options will be provided:
OpenVMS library
OpenVMS optional
OpenVMS Help Message
OpenVMS Management Station Software -- PC files
DECwindows base support
DECwindows workstation support with:
-  75 dots per inch video fonts
- 100 dots per inch video fonts
DECnet-Plus
Space remaining on system disk:  465018 blocks
* Is this correct? (Y/N) y
Restoring OpenVMS library save set ...
%BACKUP-I-STARTVERIFY, starting verification pass
Restoring OpenVMS optional save set ...
%BACKUP-I-STARTVERIFY, starting verification pass
Restoring OpenVMS Help Message save set ...
%BACKUP-I-STARTVERIFY, starting verification pass
Restoring OpenVMS Management Station Software -- PC files
%BACKUP-I-STARTVERIFY, starting verification pass
Restoring DECwindows base support save set ...
%BACKUP-I-STARTVERIFY, starting verification pass
Restoring DECwindows workstation support save set ...
%BACKUP-I-STARTVERIFY, starting verification pass
Restoring DECwindows 75 dots per inch video fonts save set ...
%BACKUP-I-STARTVERIFY, starting verification pass
Restoring DECwindows 100 dots per inch video fonts save set ...
%BACKUP-I-STARTVERIFY, starting verification pass
You can now remove the distribution kit from 226276$DIA6:.
Creating [VMS$COMMON] directory tree ...
In a cluster, you can run multiple systems sharing all files except
PAGEFILE.SYS, SWAPFILE.SYS, SYSDUMP.DMP, and VAXVMSSYS.PAR.
Cluster configuration cannot be done at this time because no network
is present.  In order to configure a cluster you must FIRST do one
or both of the following:
o Install DECnet-Plus (or DECnet Phase IV), or
o Execute SYS$STARTUP:LAN$STARTUP.COM by removing the
comment delimiter ("!") from the line
$! @SYS$STARTUP:LAN$STARTUP
in SYS$MANAGER:SYSTARTUP_VMS.COM.
Then configure the cluster by executing the following command:
@ @SYS$MANAGER:CLUSTER_CONFIG
See the OpenVMS System Manager's Manual: Essentials for more information.
* Do you want DECwindows Motif as the default windowing system? (Y/N) y
Now we will ask you for new passwords for the following accounts:
SYSTEM, SYSTEST, FIELD
Passwords must be a minimum of 8 characters in length.  All passwords
will be checked and verified.  Any passwords that can be guessed easily
will not be accepted.
* Enter password for SYSTEM:
* Re-enter for verification:
%UAF-I-MDFYMSG, user record(s) updated
%VMS-I-PWD_OKAY, account password for SYSTEM verified
* Enter password for SYSTEST:
* Re-enter for verification:
%UAF-I-MDFYMSG, user record(s) updated
%VMS-I-PWD_OKAY, account password for SYSTEST verified
The SYSTEST_CLIG account will be disabled.  You must re-enable
it before running UETP but do not assign a password.
%UAF-I-PWDLESSMIN, new password is shorter than minimum password length
%UAF-I-MDFYMSG, user record(s) updated
* Enter password for FIELD:
* Re-enter for verification:
%UAF-I-MDFYMSG, user record(s) updated
%VMS-I-PWD_OKAY, account password for FIELD verified
Creating RIGHTS database file, SYS$SYSTEM:RIGHTSLIST.DAT
Ignore any "-SYSTEM-F-DUPIDENT, duplicate identifier" errors.
%UAF-I-RDBCREMSG, rights database created
%UAF-I-RDBADDMSGU, identifier DEFAULT value [000200,000200] added to rights database
%UAF-I-RDBADDMSGU, identifier FIELD value [000001,000010] added to rights database
%UAF-I-RDBADDMSGU, identifier SYSTEM value [000001,000004] added to rights database
%UAF-I-RDBADDMSGU, identifier SYSTEST value [000001,000007] added to rights database
%UAF-E-RDBADDERRU, unable to add SYSTEST_CLIG value [000001,000007] to rights database
-SYSTEM-F-DUPIDENT, duplicate identifier
%UAF-I-NOMODS, no modifications made to system authorization file
%UAF-I-RDBDONEMSG, rights database modified
Creating MODPARAMS.DAT database file, SYS$SYSTEM:MODPARAMS.DAT
* Please enter the SCSNODE name: VAX3400
VAX3400 is an invalid node name.
The name must be 6 or fewer alphanumeric characters
with at least one alphabetic character
* Please enter the SCSNODE name: JVDVAX
* Please enter the SCSSYSTEMID:  JVDVAX
JVDVAX is not a legal SCSSYSTEMID
Legal range is 1025 - 65535
* Please enter the SCSSYSTEMID:  10000
After the installation finishes, you might want to do one or more of the
following tasks:
o DECOMPRESS THE SYSTEM LIBRARIES - To save space, many of the system
libraries are shipped in a data-compressed format.  If you have
enough disk space, you can decompress the libraries for faster access.
To data expand the libraries, type:
 $ @SYS$UPDATE:LIBDECOMP.COM
If you do not decompress these libraries, you will experience slower
response to the HELP and LINK commands.
o BUILD A STANDALONE BACKUP KIT - You can build a standalone backup kit
using the procedure described in the upgrade and installation supplement"
supplied for your VAX computer.
 o TAILOR THE SYSTEM DISK - You might want to review the files provided or
not provided during this installation.  If you find there are files
you want to remove from the system disk (TAILOR OFF) or files you want
to add (TAILOR ON), use the following utilities to perform the
desired tailoring.
OpenVMS tailoring:
$ RUN SYS$UPDATE:VMSTAILOR
DECwindows tailoring:
 $ RUN SYS$UPDATE:DECW$TAILOR
NOTE:  The tailor procedure cannot be used to TAILOR ON or TAILOR OFF
  files located on an alternate disk.
=================================================================
Continuing with OpenVMS VAX V7.1 Installation Procedure.
Configuring all devices on the system ...
If you have Product Authorization Keys (PAKs) to register, you can
register them now.
* Do you want to register any Product Authorization Keys? (Y/N): n
********************************************************************************
       After the system has rebooted you must register any Product
 Authorization Keys (PAKs) that you have received with this kit.
 You can register these PAKs by executing the following procedure:
  $ @SYS$UPDATE:VMSLICENSE
 See the OpenVMS License Management Utility Manual for any additional
  information you need.
********************************************************************************
Now registering the OpenVMS operating system in the
 POLYCENTER Software Installation product database
 The following product will be registered:
DEC VAXVMS VMS V7.1
Transition (registration)
The following product has been registered:
DEC VAXVMS VMS V7.1
 Transition (registration)
%UTC-I-UPDTIME, updating Time Zone information in SYS$COMMON:[SYSEXE]
Configuring the Local Time Zone          TIME ZONE SPECIFICATION -- Main Time Zone Menu
1) Australia       11) GMT             21) Mexico          31) Turkey
 2) Brazil          12) Greenwich       22) NZ              32) UCT
 3) CET             13) Hong Kong       23) NZ-CHAT         33) US
4) Canada          14) Iceland         24) Navajo          34) UTC
 5) Chile           15) Iran            25) PRC             35) Universal
6) Cuba            16) Israel          26) Poland          36) W-SU
7) EET             17) Jamaica         27) ROC             37) WET
8) Egypt           18) Japan           28) ROK             38) Zulu
9) Factory         19) Libya           29) Singapore       10) GB-Eire
 20) MET             30) SystemV          0) None of the above
Select the number above that best describes your location: 0    ***
%UTC-W-GMT, A choice of 0 defaults your local time to GMT  ***
 Is this correct? (Yes/No) [NO]:         TIME ZONE SPECIFICATION -- Main Time Zone Menu
1) Australia       11) GMT             21) Mexico          31) Turkey
 2) Brazil          12) Greenwich       22) NZ              32) UCT
3) CET             13) Hong Kong       23) NZ-CHAT         33) US
4) Canada          14) Iceland         24) Navajo          34) UTC
 5) Chile           15) Iran            25) PRC             35) Universal
 6) Cuba            16) Israel          26) Poland          36) W-SU
   7) EET             17) Jamaica         27) ROC             37) WET
  8) Egypt           18) Japan           28) ROK             38) Zulu
 9) Factory         19) Libya           29) Singapore       10) GB-Eire
 20) MET             30) SystemV          0) None of the above
  Select the number above that best describes your location: 20
You selected MET as your time zone.  Is this correct? (Yes/No) [YES]: yes
Default Time Differential Factor for standard time is 1:00.
 Default Time Differential Factor for daylight saving time is 2:00.
  The Time Differential Factor (TDF) is the difference between your
   system time and Coordinated Universal Time (UTC).  UTC is similar
in most repects to Greenwich Mean Time (GMT).
The TDF is expressed as hours and minutes, and should be entered
in the hh:mm format.  TDFs for the Americas will be negative
(-3:00, -4:00, etc.); TDFs for Europe, Africa, Asia and Australia
will be positive (1:00, 2:00, etc.).
Is Daylight Savings time in effect? (Yes/No): yes
Enter the Time Differential Factor [2:00]:
NEW SYSTEM TIME DIFFERENTIAL FACTOR = 2:00.
Is this correct? [Y]: y
DECnet-Plus will now be installed.
Media containing the DECnet-Plus kit must be available.
If you are installing OpenVMS from an Infoserver (DAD1)
or local CD-ROM, there is a DECnet-Plus kit on the CD-ROM.
If you are installing from a cartridge tape (TK50) or
from an open reel tape, you should have a DECnet-Plus kit
on cartidge tape or open reel tape.
An appropriate DECnet-Plus kit may also be available on
the Consolidated Distribution CD-ROM, or you may have a
separate DECnet-Plus kit.
NOTE: You may choose any available media for the
DECnet-Plus kit.  It is NOT NECESSARY to use the same
type of media that contained the OpenVMS kit.
If you do not have a DECnet-Plus kit available, or if you
 have decided NOT to install/upgrade DECnet-Plus, you can
 bypass the DECnet-Plus installation by entering "EXIT"
for the "name of drive holding the DECnet-Plus kit".
* Enter name of drive holding the DECnet-Plus kit: exit
"EXIT" indicates that you do NOT want to install
or upgrade DECnet-Plus.
* Is this correct? (Y/N) y
********************************************************************************
          Running AUTOGEN to compute the new SYSTEM parameters ...
%AUTOGEN-I-BEGIN, GETDATA phase is beginning.
%AUTOGEN-I-NEWFILE, A new version of SYS$SYSTEM:PARAMS.DAT has been created.
  You may wish to purge this file.
%AUTOGEN-I-END, GETDATA phase has successfully completed.
%AUTOGEN-I-BEGIN, GENPARAMS phase is beginning.
%AUTOGEN-I-NEWFILE, A new version of SYS$MANAGER:VMSIMAGES.DAT has been created.
       You may wish to purge this file.
%AUTOGEN-I-NEWFILE, A new version of SYS$SYSTEM:SETPARAMS.DAT has been created.
 You may wish to purge this file.
%AUTOGEN-I-END, GENPARAMS phase has successfully completed.
%AUTOGEN-I-BEGIN, GENFILES phase is beginning.
%SYSGEN-I-EXTENDED, SYS$SYSROOT:[SYSEXE]PAGEFILE.SYS;1 extended
%SYSGEN-I-EXTENDED, SYS$SYSROOT:[SYSEXE]SWAPFILE.SYS;1 extended
%SYSGEN-I-CREATED, SYS$SPECIFIC:[SYSEXE]SYSDUMP.DMP;1 created
%SYSGEN-I-CREATED, DISK0$DIA0:[SYS0.SYSEXE]ERRORLOG.DMP;1 created
%AUTOGEN-I-REPORT, AUTOGEN has produced some informational messages which
have been stored in the file SYS$SYSTEM:AGEN$PARAMS.REPORT.  You may
wish to review the information in that file.
%AUTOGEN-I-END, GENFILES phase has successfully completed.
%AUTOGEN-I-BEGIN, SETPARAMS phase is beginning.
%AUTOGEN-I-END, SETPARAMS phase has successfully completed.
%AUTOGEN-I-BEGIN, REBOOT phase is beginning.
The system is shutting down to allow the system to boot with the
generated site-specific parameters and installed images.
The system will automatically reboot after the shutdown and the
installation will be complete.
SHUTDOWN -- Perform an Orderly System Shutdown
%SHUTDOWN-I-BOOTCHECK, performing reboot consistency check...
%SHUTDOWN-I-CHECKOK, basic reboot consistency check completed
%SHUTDOWN-I-OPERATOR, this terminal is now an operator's console
%OPCOM-W-NOOPCOM, the request was not sent, the OPCOM process is not running
%SHUTDOWN-I-DISLOGINS, interactive logins will now be disabled
%SET-I-INTSET, login interactive limit = 0, current interactive value = 0
%SHUTDOWN-I-STOPQUEUES, the queues on this node will now be stopped
%JBC-E-OPENERR, error opening SYS$SYSROOT:[SYSEXE]QMAN$MASTER.DAT;
-RMS-E-FNF, file not found
SHUTDOWN message from user SYSTEM at  Batch   13:29:07
The system will shut down in 0 minutes; back up SOON.  Please log off.
 Reboot system with AUTOGENerated parameters
%SHUTDOWN-I-STOPUSER, all user processes will now be stopped
%SHUTDOWN-I-REMOVE, all installed images will now be removed
%SHUTDOWN-I-DISMOUNT, all volumes will now be dismounted
%OPCOM-W-NOOPCOM, the request was not sent, the OPCOM process is not running
%OPCOM-W-NOOPCOM, the request was not sent, the OPCOM process is not running

?06 HLT INST
PC = 81666595

>>>boot  (BOOT/R5:0 DIA0)
2..  -DISK0$DIA0
1..0..

%SYSBOOT-I-SYSBOOT Mapping the SYSDUMP.DMP on the System Disk
%SYSBOOT-I-SYSBOOT SYSDUMP.DMP on System Disk successfully mapped

OpenVMS (TM) VAX Version V7.1     Major version id = 1 Minor version id = 0
        *****************************************************************
	OpenVMS VAX V7.1

	You have SUCCESSFULLY installed the OpenVMS VAX Operating System.
	The system is now executing the STARTUP procedure.  Please
	wait for the completion of STARTUP before logging in to the
	system.
	*****************************************************************

%STDRV-I-STARTUP, OpenVMS startup begun at  4-AUG-2008 13:33:48.32
%DCL-S-SPAWNED, process SYSTEM_1 spawned
%  OPCOM   4-AUG-2008 13:34:31.49
%  Operator _JVDVAX$OPA0: has been enabled, username SYSTEM
%  OPCOM   4-AUG-2008 13:34:31.57
%  Operator status for operator _JVDVAX$OPA0:  CENTRAL, PRINTER, TAPES, DISKS,
DEVICES, CARDS, NETWORK, CLUSTER, SECURITY,  LICENSE, OPER1, OPER2, OPER3, OPER4,
OPER5, OPER6, OPER7, OPER8, OPER9, OPER10,  OPER11, OPER12
%  OPCOM   4-AUG-2008 13:34:31.85
%  Logfile has been initialized by operator _JVDVAX$OPA0:
Logfile is JVDVAX::SYS$SYSROOT:[SYSMGR]OPERATOR.LOG;1
%  OPCOM   4-AUG-2008 13:34:31.86
%  Operator status for operator JVDVAX::SYS$SYSROOT:[SYSMGR]OPERATOR.LOG;1
CENTRAL, PRINTER, TAPES, DISKS, DEVICES, CARDS, NETWORK, CLUSTER, SECURITY,
LICENSE, OPER1, OPER2, OPER3, OPER4, OPER5, OPER6, OPER7, OPER8, OPER9,
OPER10,  OPER11, OPER12
%SET-I-NEWAUDSRV, identification of new audit server process is 0000010A
%  OPCOM   4-AUG-2008 13:34:33.40
%  Message from user AUDIT$SERVER on JVDVAX
%AUDSRV-I-NEWSERVERDB, new audit server database created
%  OPCOM   4-AUG-2008 13:34:34.79
%  Message from user JOB_CONTROL on JVDVAX
%JBC-E-OPENERR, error opening SYS$COMMON:[SYSEXE]QMAN$MASTER.DAT;
%  OPCOM   4-AUG-2008 13:34:34.88
%  Message from user JOB_CONTROL on JVDVAX  -RMS-E-FNF, file not found
%  OPCOM   4-AUG-2008 13:34:35.23
%  Message from user AUDIT$SERVER on JVDVAX
%AUDSRV-I-REMENABLED, resource monitoring enabled for journal SECURITY
%  OPCOM   4-AUG-2008 13:34:35.71
%  Message from user AUDIT$SERVER on JVDVAX
%AUDSRV-I-NEWOBJECTDB, new object database created
%LICENSE-F-EMTLDB, license database contains no license records
%  OPCOM   4-AUG-2008 13:34:40.20
%  Message from user SYSTEM on JVDVAX
%SECSRV-E-NOPROXYDB, cannot find proxy database file NET$PROXY.DAT
%RMS-E-FNF, file not found
%  OPCOM   4-AUG-2008 13:34:40.32
%  Message from user SYSTEM on JVDVAX
%SECSRV-E-NOPROXYDB, cannot find proxy database file NET$PROXY.DAT
%RMS-E-FNF, file not found
%  OPCOM   4-AUG-2008 13:34:40.32
%  Message from user SYSTEM on JVDVAX
%SECSRV-I-SERVERSTARTINGU, security server starting up
%  OPCOM   4-AUG-2008 13:34:41.06
%  Message from user SYSTEM on JVDVAX
%SECSRV-I-CIASTARTINGUP, breakin detection and evasion processing now starting up
%  OPCOM   4-AUG-2008 13:34:43.07
%  Message from user SYSTEM on JVDVAX
%LICENSE-E-NOAUTH, DEC VAX-VMS use is not authorized on this node
-LICENSE-F-NOLICENSE, no license is active for this software product
-LICENSE-I-SYSMGR, please see your system manager
%LICENSE-E-NOAUTH, DEC VAX-VMS use is not authorized on this node
-LICENSE-F-NOLICENSE, no license is active for this software product
-LICENSE-I-SYSMGR, please see your system manager  Startup processing continuing...
%  OPCOM   4-AUG-2008 13:34:45.31
%  Message from user SYSTEM on JVDVAX  Warning: DECdtm log file not found
(SYS$JOURNAL:SYSTEM$JVDVAX.LM$JOURNAL)
%RMS-E-FNF, file not found
TP server process waiting
%  OPCOM   4-AUG-2008 13:34:47.35
%  Message from user AUDIT$SERVER on JVDVAX  Security alarm (SECURITY)
and security audit (SECURITY) on JVDVAX, system id: 10000  Auditable event:
          Audit server starting up
Event time:                4-AUG-2008 13:34:46.83
PID:                      00000103
Username:                 SYSTEM
%  OPCOM   4-AUG-2008 13:34:49.89
%  Message from user AUDIT$SERVER on JVDVAX  Security alarm (SECURITY)
and security audit (SECURITY) on JVDVAX, system id: 10000  Auditable event:
          Identifier added  Event time:                4-AUG-2008 13:34:49.77
PID:                      00000103
Process name:             STARTUP
    Username:                 SYSTEM
    Process owner:            [SYSTEM]
 Image name:               DISK0$DIA0:[SYS0.SYSCOMMON.][SYSEXE]AUTHORIZE.EXE
Identifier name:          SYS$NODE_JVDVAX
        Identifier value:      %X80010000
   Attributes:               none
%UAF-I-RDBADDMSG, identifier SYS$NODE_JVDVAX value
%X80010000 added to rights database
%SET-I-INTSET, login interactive limit = 64, current interactive value = 0    SYSTEM

job terminated at  4-AUG-2008 13:34:53.34
Accounting information:
Buffered I/O count:            1290
Peak working set size:     953
Direct I/O count:               502
Peak page file size:      4502
Page faults:                   4721
Mounted volumes:             0
Charged CPU time:           0 00:00:49.52
Elapsed time:     0 00:01:17.62

Welcome to OpenVMS (TM) VAX Operating System, Version V7.1

Username: system   Password:
%LICENSE-I-NOLICENSE, no license is active for this software product
%LOGIN-S-LOGOPRCON, login allowed from OPA0:
Welcome to OpenVMS (TM) VAX Operating System, Version V7.1

$ @sys$update:libdecomp.com
OpenVMS Library Decompression Utility
1  HELPLIB.HLB          15  SDA.HLB              28  PHONEHELP.HLB
2  STARLET.OLB          16  SHWCLHELP.HLB        29  LIB.MLB
3  ACLEDT.HLB           17  SYSGEN.HLB           30  STARLET.MLB
4  ANLRMSHLP.HLB        18  ANALAUDIT$HELP.HLB   31  STARLETSD.TLB
5  DBG$HELP.HLB         19  SYSMANHELP.HLB       32  SYS$STARLET_C.TLB
6  DBG$UIHELP.HLB       20  TFF$TFUHELP.HLB      33  ERFLIB.TLB
7  DISKQUOTA.HLB        21  EXCHNGHLP.HLB        34  VAXCCURSE.OLB
8  EDFHLP.HLB           22  TPUHELP.HLB          35  VAXCRTL.OLB
9  INSTALHLP.HLB        23  EVE$HELP.HLB         36  VAXCRTLG.OLB
10  LATCP$HELP.HLB       24  EVE$KEYHELP.HLB      37  IMAGELIB.OLB
11  MAILHELP.HLB         25  UAFHELP.HLB          38  DECCCURSE.OLB
12  MNRHELP.HLB          26  TECO.HLB             39  DECCRTL.OLB
13  EDTHELP.HLB          27  PATCHHELP.HLB        40  DECCRTLG.OLB
A  ALL libraries to be decompressed
E  EXIT this procedure
* Enter letter or number(s) of libraries to be decompressed
(Separate multiple entries with a comma): a

%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSHLP]HELPLIB.HLB
%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSHLP]ACLEDT.HLB
%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSHLP]ANLRMSHLP.HLB
%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSHLP]DBG$HELP.HLB
%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSHLP]DBG$UIHELP.HLB
%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSHLP]DISKQUOTA.HLB
%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSHLP]EDFHLP.HLB
%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSHLP]INSTALHLP.HLB
%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSHLP]LATCP$HELP.HLB
%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSHLP]MAILHELP.HLB
%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSHLP]MNRHELP.HLB
%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSHLP]EDTHELP.HLB
%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSHLP]NCPHELP.HLB
%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSHLP]SDA.HLB
%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSHLP]SHWCLHELP.HLB
%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSHLP]SYSGEN.HLB
%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSHLP]ANALAUDIT$HELP.HLB
%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSHLP]SYSMANHELP.HLB
%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSHLP]TFF$TFUHELP.HLB
%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSHLP]EXCHNGHLP.HLB
%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSHLP]TPUHELP.HLB
%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSHLP]EVE$HELP.HLB
%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSHLP]EVE$KEYHELP.HLB
%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSHLP]UAFHELP.HLB
%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSHLP]TECO.HLB
%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSHLP]PATCHHELP.HLB
%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSHLP]PHONEHELP.HLB
%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSLIB]LIB.MLB
%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSLIB]STARLET.MLB
%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSLIB]STARLETSD.TLB
%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSLIB]SYS$STARLET_C.TLB
%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSLIB]ERFLIB.TLB
%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSLIB]VAXCCURSE.OLB
%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSLIB]VAXCRTL.OLB
%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSLIB]VAXCRTLG.OLB
%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSLIB]IMAGELIB.OLB
%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSLIB]DECCCURSE.OLB
%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSLIB]DECCRTL.OLB
%UPGRADE-I-EXPANDING, decompressing library SYS$COMMON:[SYSLIB]DECCRTLG.OLB

$ shutdown
SHUTDOWN -- Perform an Orderly System Shutdown
on node JVDVAX
%SHUTDOWN-I-OPERATOR, this terminal is now an operator's console
%  OPCOM   4-AUG-2008 14:31:30.92
%  Operator status for operator _JVDVAX$OPA0:  CENTRAL, PRINTER, TAPES, DISKS,
DEVICES, CARDS, NETWORK, CLUSTER, SECURITY,  LICENSE, OPER1, OPER2, OPER3, OPER4,
OPER5, OPER6, OPER7, OPER8, OPER9, OPER10,  OPER11, OPER12
%SHUTDOWN-I-DISLOGINS, interactive logins will now be disabled
%SET-I-INTSET, login interactive limit = 0, current interactive value = 1
%SHUTDOWN-I-STOPQUEUES, the queues on this node will now be stopped
%  OPCOM   4-AUG-2008 14:31:32.74
%  Message from user JOB_CONTROL on JVDVAX
%JBC-E-OPENERR, error opening SYS$COMMON:[SYSEXE]QMAN$MASTER.DAT;
%  OPCOM   4-AUG-2008 14:31:32.76
%  Message from user JOB_CONTROL on JVDVAX  -RMS-E-FNF, file not found
SHUTDOWN message on JVDVAX from user SYSTEM at _JVDVAX$OPA0:   14:31:33
JVDVAX will shut down in 0 minutes; back up LATER.  Please log off node JVDVAX.
SHUTDOWN        1 terminal has been notified on JVDVAX.
%SHUTDOWN-I-STOPUSER, all user processes will now be stopped
%SHUTDOWN-I-STOPAUDIT, the security auditing subsystem will now be shut down
%  OPCOM   4-AUG-2008 14:31:37.46
%  Message from user AUDIT$SERVER on JVDVAX  Security alarm (SECURITY) and
security audit (SECURITY) on JVDVAX, system id: 10000
Auditable event:          Audit server shutting down
Event time:                4-AUG-2008 14:31:37.45
PID:                      0000010E
Username:                 SYSTEM
%SHUTDOWN-I-REMOVE, all installed images will now be removed
%SHUTDOWN-I-DISMOUNT, all volumes will now be dismounted
%  OPCOM   4-AUG-2008 14:31:44.87
%  Message from user SYSTEM on JVDVAX  _JVDVAX$OPA0:,
JVDVAX shutdown was requested by the operator.
%  OPCOM   4-AUG-2008 14:31:45.03
%  Logfile was closed by operator _JVDVAX$OPA0:
Logfile was JVDVAX::SYS$SYSROOT:[SYSMGR]OPERATOR.LOG;1
%  OPCOM   4-AUG-2008 14:31:45.21
%  Operator _JVDVAX$OPA0: has been disabled, username SYSTEM
SYSTEM SHUTDOWN COMPLETE - use console to halt system
?02 EXT HLT
PC = 80F8FED3
>>>halt
>>>

Update 05-AUG-2008

vandaag de TOY accu maar eens vervangen. Deze was aardig verrot (Ni-Cd, > 10 jaar oud). Helaas was de stekker van de accu ook verrot, dus deze ook vervangen.

KA640-A V5.3, VMB 2.7
Performing normal system tests.
41..40..39..38..37..36..35..34..33..32..31..30..29..28..27..26..
25..24..23..22..21..20..19..18..17..16..15..14..13..12..11..10..
09..08..07..06..05..04..03..
Tests completed.
Loading system software.
No default boot device has been specified.

Available devices.
-DIA0 (RF31)
-DIA1 (RF31)
-MUA0 (TK70)
-ESA0 (08-00-2B-26-55-D1)

Device? [ESA0]:

(BOOT/R5:0 ESA0)


  2..
-ESA0

KA640-A V5.3, VMB 2.7
Performing normal system tests.
41..40..39..38..37..36..35..34..33..32..31..30..29..28..27..26..
25..24..23..22..21..20..19..18..17..16..15..14..13..12..11..10..
09..08..07..06..05..04..03..
Tests completed.
>>>show boot

>>>set boot dia0
>>>show boot
DIA0
>>>

KA640-A V5.3, VMB 2.7
Performing normal system tests.
41..40..39..38..37..36..35..34..33..32..31..30..29..28..27..26..
25..24..23..22..21..20..19..18..17..16..15..14..13..12..11..10..
09..08..07..06..05..04..03..
Tests completed.
Loading system software.
(BOOT/R5:0 DIA0)


  2..
-DISK0$DIA0
  1..0..

%SYSBOOT-I-SYSBOOT Mapping the SYSDUMP.DMP on the System Disk
%SYSBOOT-I-SYSBOOT SYSDUMP.DMP on System Disk successfully mapped
   OpenVMS (TM) VAX Version V7.1     Major version id = 1 Minor version id = 0

PLEASE ENTER DATE AND TIME (DD-MMM-YYYY  HH:MM)  5-AUG-2008 20:23
$!  Copyright (c) 1996 Digital Equipment Corporation.  All rights reserved.

%STDRV-I-STARTUP, OpenVMS startup begun at  5-AUG-2008 20:23:52.53
%DCL-S-SPAWNED, process SYSTEM_1 spawned
%%%%%%%%%%%  OPCOM   5-AUG-2008 20:24:36.15  %%%%%%%%%%%
Operator _JVDVAX$OPA0: has been enabled, username SYSTEM

%%%%%%%%%%%  OPCOM   5-AUG-2008 20:24:36.24  %%%%%%%%%%%
Operator status for operator _JVDVAX$OPA0:
CENTRAL, PRINTER, TAPES, DISKS, DEVICES, CARDS, NETWORK, CLUSTER, SECURITY,
LICENSE, OPER1, OPER2, OPER3, OPER4, OPER5, OPER6, OPER7, OPER8, OPER9, OPER10,
OPER11, OPER12
%%%%%%%%%%%  OPCOM   5-AUG-2008 20:24:36.65  %%%%%%%%%%%
Logfile has been initialized by operator _JVDVAX$OPA0:
Logfile is JVDVAX::SYS$SYSROOT:[SYSMGR]OPERATOR.LOG;2
%%%%%%%%%%%  OPCOM   5-AUG-2008 20:24:36.65  %%%%%%%%%%%
Operator status for operator JVDVAX::SYS$SYSROOT:[SYSMGR]OPERATOR.LOG;2
CENTRAL, PRINTER, TAPES, DISKS, DEVICES, CARDS, NETWORK, CLUSTER, SECURITY,
LICENSE, OPER1, OPER2, OPER3, OPER4, OPER5, OPER6, OPER7, OPER8, OPER9, OPER10,
OPER11, OPER12
%SET-I-NEWAUDSRV, identification of new audit server process is 0000010A
%%%%%%%%%%%  OPCOM   5-AUG-2008 20:24:39.42  %%%%%%%%%%%
Message from user JOB_CONTROL on JVDVAX
%JBC-E-OPENERR, error opening SYS$COMMON:[SYSEXE]QMAN$MASTER.DAT;

%%%%%%%%%%%  OPCOM   5-AUG-2008 20:24:39.44  %%%%%%%%%%%
Message from user JOB_CONTROL on JVDVAX
-RMS-E-FNF, file not found
%LICENSE-F-EMTLDB, license database contains no license records
%%%%%%%%%%%  OPCOM   5-AUG-2008 20:24:43.59  %%%%%%%%%%%
Message from user SYSTEM on JVDVAX
%SECSRV-E-NOPROXYDB, cannot find proxy database file NET$PROXY.DAT
%RMS-E-FNF, file not found
%%%%%%%%%%%  OPCOM   5-AUG-2008 20:24:43.66  %%%%%%%%%%%
Message from user SYSTEM on JVDVAX
%SECSRV-E-NOPROXYDB, cannot find proxy database file NET$PROXY.DAT
%RMS-E-FNF, file not found
%%%%%%%%%%%  OPCOM   5-AUG-2008 20:24:43.72  %%%%%%%%%%%
Message from user SYSTEM on JVDVAX
%SECSRV-I-SERVERSTARTINGU, security server starting up
%%%%%%%%%%%  OPCOM   5-AUG-2008 20:24:44.05  %%%%%%%%%%%
Message from user SYSTEM on JVDVAX
%SECSRV-I-CIASTARTINGUP, breakin detection and evasion processing now starting up
%%%%%%%%%%%  OPCOM   5-AUG-2008 20:24:46.36  %%%%%%%%%%%
Message from user SYSTEM on JVDVAX
%LICENSE-E-NOAUTH, DEC VAX-VMS use is not authorized on this node
-LICENSE-F-NOLICENSE, no license is active for this software product
-LICENSE-I-SYSMGR, please see your system manager

%LICENSE-E-NOAUTH, DEC VAX-VMS use is not authorized on this node
-LICENSE-F-NOLICENSE, no license is active for this software product
-LICENSE-I-SYSMGR, please see your system manager
Startup processing continuing...

%%%%%%%%%%%  OPCOM   5-AUG-2008 20:24:48.60  %%%%%%%%%%%
Message from user SYSTEM on JVDVAX
Warning: DECdtm log file not found (SYS$JOURNAL:SYSTEM$JVDVAX.LM$JOURNAL)
        %RMS-E-FNF, file not found
        TP server process waiting

%%%%%%%%%%%  OPCOM   5-AUG-2008 20:24:50.86  %%%%%%%%%%%
Message from user AUDIT$SERVER on JVDVAX
Security alarm (SECURITY) and security audit (SECURITY) on JVDVAX, system id: 10000
Auditable event:          Audit server starting up
Event time:                5-AUG-2008 20:24:50.18
PID:                      00000103
Username:                 SYSTEM
%SET-I-INTSET, login interactive limit = 64, current interactive value = 0
  SYSTEM       job terminated at  5-AUG-2008 20:24:54.35

  Accounting information:
  Buffered I/O count:            1010         Peak working set size:     999
  Direct I/O count:               441         Peak page file size:      4021
  Page faults:                   3405         Mounted volumes:             0
  Charged CPU time:           0 00:00:41.60   Elapsed time:     0 00:01:03.71

        Welcome to OpenVMS (TM) VAX Operating System, Version V7.1


Username: system
Password:
%LICENSE-I-NOLICENSE, no license is active for this software product
%LOGIN-S-LOGOPRCON, login allowed from OPA0:
        Welcome to OpenVMS (TM) VAX Operating System, Version V7.1
    Last interactive login on Monday,  4-AUG-2008 13:35
$ show system

OpenVMS V7.1  on node JVDVAX   5-AUG-2008 20:28:55.56  Uptime  0 00:05:55
  Pid    Process Name    State  Pri      I/O       CPU       Page flts  Pages
00000101 SWAPPER         HIB     16        0   0 00:00:00.34         0      0
00000105 CONFIGURE       HIB      9       15   0 00:00:00.19       121    183
00000107 IPCACP          HIB     10        6   0 00:00:00.13        95    164
00000108 ERRFMT          HIB      9       21   0 00:00:00.30       125    213
00000109 OPCOM           HIB      9       41   0 00:00:00.50       202    251
0000010A AUDIT_SERVER    HIB      9       48   0 00:00:01.08       542    831
0000010B JOB_CONTROL     HIB      9       29   0 00:00:00.28       159    281
0000010C SECURITY_SERVER HIB     10       25   0 00:00:01.15       950   1295
0000010D TP_SERVER       HIB     10       25   0 00:00:00.63       203    306
00000110 SYSTEM          CUR      6       80   0 00:00:01.84       647    693

$lo
  SYSTEM           logged out at  5-AUG-2008 20:29:44.14

Overview

This chapter provides a brief overview of the KA640 CPU module and MS650 memory modules.

1.1 Introduction

The KA640, shown in Figure 1-1, is a quad-height VAX processor module for the Q22-bus (extended LSI-ll bus) with built-in DSSI and Ethernet controllers. It is designed for use in high speed, real-time applications and for multiuser, multitasking environments. There are two variants, KA640-AA and the KA640-BA. The KA640-AA runs multi-user software; the KA640-BA runs single-user software.

The KA640 is used in two systems, the MicroVAX 3300 and the MicroVAX 3400. The MicroVAX 3300 is in a BA215 enclosure. The MicroVAX 3400 is in a BA213 enclosure. Refer to the BA21S Enclosure Maintenance and the BA2l3 Enclosure Maintenance for a detailed description of each enclosure.

The KA640 CPU module and MS650 memory modules combine to form a VAX CPU/memory subsystem that uses the Q22-bus, DSSI bus, and Ethernet to communicate with mass storage and 110 devices. The KA640 and MS650 modules mount in standard Q22-bus backplane slots that implement the Q22-bus in the AB rows and the CD interconnect in the CD rows. A single KA640 can support up to three MS650 modules, if enough Q22/CD slots are available.

The KAA640 communicates with the console device via the H3602-SA CPU cover panel, which also contains configuration switches, an LED display, and DESTA (Ethernet connector).

The major functional blocks of the KA640 CPU module are shown in Figure 1-2, and are described in the following paragraphs.

1.2 Central Processing Unit

The central processing unit (CPU) is implemented by the CVAX chip. The CVAX chip contains approximately 180,000 transistors in an 84-pin CERQUAD surface mount package. It achieves a 100 ns microcycle and a 200 ns bus cycle at an operating frequency of 20 MHz. The CVAX chip supports full VAX memory management and a 4 Gigabyte virtual address space.

The CVAX chip contains all VAX visible general purpose registers (GPRs), several system registers (MSER, CADR, SCBB, etc.), the cache memory (1 Kbyte) , and all memory management hardware including a 28-entry translation buffer.

The CVAX chip provides the following functions:

  • Fetches all V AX instructions
  • Executes 181 VAX instructions
  • Assists in the execution of 21 additional instructions
  • Passes 70 floating point instructions to the CFP A chip

The remaining 32 VAX instructions (including H-floating and octaword) must be emulated in macrocode.

The CVAX chip provides the following subset of the VAX data types:

  • Byte
  • Word
  • Longword
  • Quadword
  • Character string
  • Variable length bit field

Support for the remaining V AX data types can be provided via macrocode emulation.

1.3 Floating Point Accelerator

The floating point accelerator is implemented by the CFPA chip. The CFPA chip contains approximately 60,000 transistors in a 68-pin CERQUAD surface mount package. It executes 70 floating point instructions.

The CFPA chip receives opcode information from the CVAX chip, and receives operands directly from memory or from the CVAX chip. The floating point result is always returned to the CVAX chip.

1.4 Cache Memory

The KA640 module incorporates a cache memory within the CV AX chip to maximize CPU performance. The cache is a 1 Kbyte, two-way associative, write through cache memory, with a 100 ns cycle time.

1.5 Memory Controller>

The main memory controller is implemented by a VLSI chip called the CMCTL. The CMCTL contains approximately 25,000 transistors in a 132- pin CERQUAD surface mount package. It supports up to 64 Mbytes of ECC memory, of which only 52 MBytes can be used on a KA640, with a 400 ns cycle time for longword transfers and a 600 ns cycle time for quadword transfers. This memory resides on the KA640 CPU module, and depending on the system configuration, one to three MS650 memory modules.

1.6 MS650-AA Memory Modules

The MS650-AA memory modules are 8 Mbyte, 450 ns, 39-bit wide arrays (32-bit data and 7 -bit ECC) implemented with 256 Kb dynamic RAMs in zig-zag in-line packages (ZIPs). MS650-AA memory modules are single, quad-height, Q22-bus modules, as shown in Figure 1-3.

The MS650 modules communicate with the KA640 via the MS650 memory interconnect, which utilizes the CD rows of backplane slots 2 through 4, and a 50-pin ribbon cable. The KA640 memory subsystem supports a maximum of 3 memory modules.

1.7 DSSI Interface

An on-board digital small storage interconnect (DSSI) bus interface is implemented by the SII chip and four 32K by 8 static RAMs. The DSSI interface allows the KA640 to transmit packets of data to, and receive packets of data from up to seven other DSSI devices. The KA640 system configurations contain one or more RF30 fixed disk devices, connected through the DSSI bus.

1.8 Ethernet Interface

The KA640 CPU module features an on-board network interface that is implemented via the LANCE chip and two 32K by 8 static RAMs. When used in conjunction with the H3602-SA CPU cover panel, this interface allows the KA640 to be connected to either a Thin Wire or standard Ethernet network.

The Ethernet interface includes registers for control and status reporting as well as a DMA controller, a 24 word transmit silo and a 24 word receive silo.

1.9 Q22-bus Interface

The Q22-bus interface is implemented by the CQBIC chip. The CQBIC chip contains approximately 40,870 transistors in a 132-pin CERQUAD surface mount package. It supports up to 16-word, block mode transfers between a Q22-bus DMA device and main memory, and up to 2-word, block mode transfers between the CPU and Q22-bus devices. The Q22-bus interface contains the following:

  • A 16-entry map cache for the 8,192-entry, main memory-resident "scatter-gather" map, used for translating 22-bit Q22-bus addresses into 26-bit main memory addresses
  • Interrupt arbitration logic that recognizes Q22-bus interrupt requests BR7-BR4
  • Q22-bus termination (240 Ω)

1.10 MicroVAX System Support Functions

System support functions are implemented by the system support chip (SSC). The SSC contains approximately 83,000 transistors in an 84-pin CERQUAD surface mount package. The SSC provides console and boot code support functions, operating system support functions, timers, and many ~xtra features, including the following:

  • Word-wide ROM unpacking
  • 1 Kbyte battery backed-up RAM
  • Halt arbitration logic
  • Console serial line
  • Interval timer with 10 ms interrupts
  • VAX standard time of year (TOY) clock with support for battery back-up
  • IORESET register
  • Programmable CDAL bus timeout
  • Two programmable timers similar in function to the VAX standard interval timer
  • A register for controlling the dignostic LEDs

1.11 Firmware

The firmware consists of 128 Kbytes of 16 bit-wide ROM, located on two 27512 EPROMs. The firmware gains control when the processor halts, and contains programs that provide the following services:

  • Board initialization
  • Power-up self-testing of the KA640 and MS650 modules
  • Emulation of a subset of the VAX standard console (automatic/manual bootstrap, automatic/manual restart, and a simple command language for examining/altering the state of the processor)
  • Booting from supported Q22-bus devices
  • Multilingual capability
  • MOP support

1.12 Clock Functions

All clock functions are implemented by the CVAX clock chip. The CVAX clock chip is a 44-pin CERQUAD surface mount chip that contains approximately 350 transistors, and provides the following functions:

  • Generates two MOS clocks for the CPU, the floating point accelerator, and the main memory controller
  • Generates three auxiliary clocks for other miscellaneous TTL logic
  • Synchronizes reset signal for the CPU, the floating point accelerator, and the main memory controller
  • Synchronizes data ready and data error signals for the CPU, floating point accelerator, and the main memory controller

Bron: KA640 CPU Module Technical Manual



Foto's:

Overzicht.
Blauwe connector: Front Panel
Grijze connector: DSSI en Memory-Bus

Rechtsboven:

21-24673-01
DEC 509B
78135-GA
(c) (m) DEC 1986
K304-05 18820
Links:
21-25091-01
K455-25 8822
Rechts:
21-26604-02
K649-38 8824

Links:

21-24764-13
K797-43 8828
Rechts:
21-25972-01
K801-43 8826

Linksboven:

D27512-25
Linksonder:
D27512-170V05
Rechts:
21-24942-03
DEC 511G
78332-GA
(c) (m) DEC 1987
K442-24A1
A 8805

Boven:

21-21672-07
AM7990DC/70
8711JP Y
(c) 1985 AMD

Links:

21-28391-02
DEC 563B
(c) (m) DEC 1987
S032-17 18817
Rechts:
21274901
TC17G080AY
0035 8742EAI JAPAN

KA640 MAYFAIR II





Reacties:
Er zijn nog geen reacties op deze pagina.


Uw e-mail adres zal niet worden getoond.


Image beast-nylons beast-nylons
